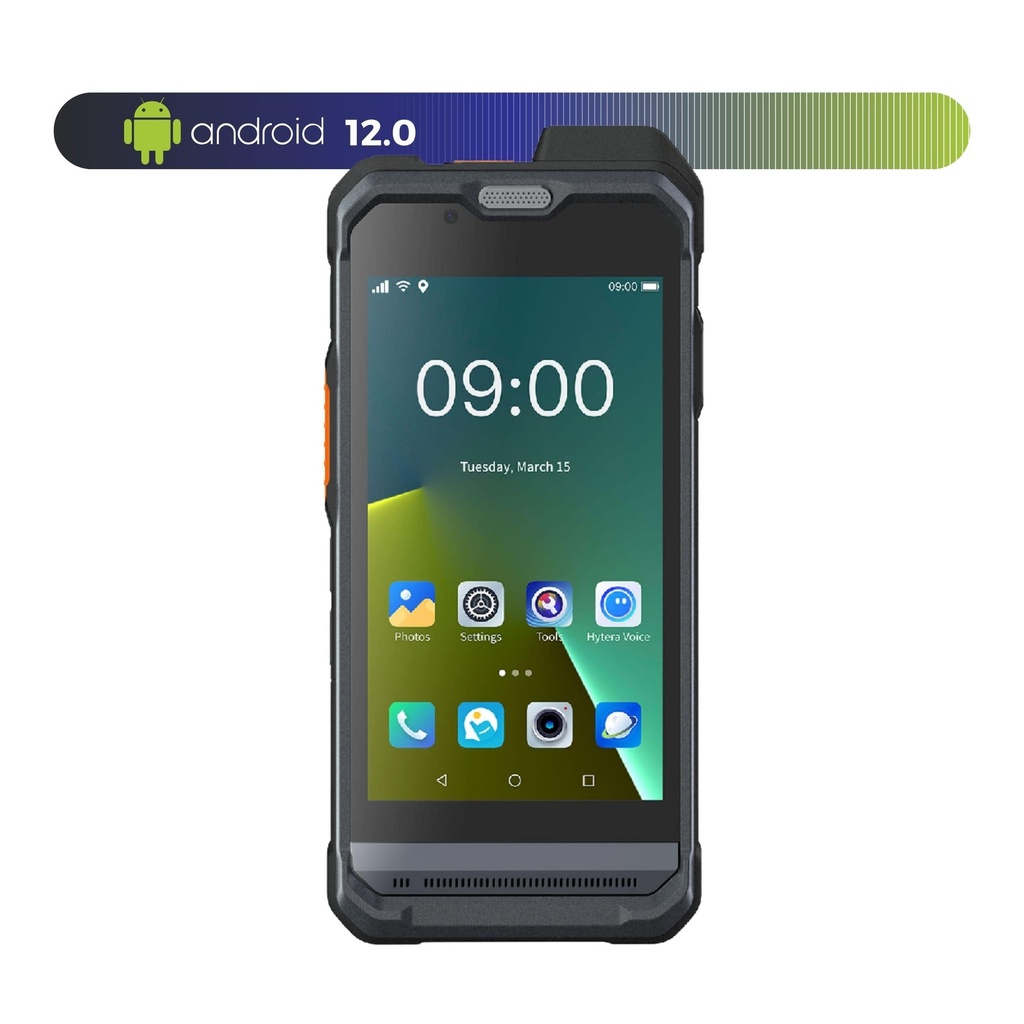

PNC460 Product Description
The PNC460U is a UL913-certified intrinsically safe smart device with the capabilities of large-screen smartphone and push-to-talk over cellular (PoC) radio rolled into one. It provides purpose-built apps, instant PoC calls, video-based dispatch, and more to get things done in less time and with less hassle. Work safer.
- Explosion-proof, 6GB+128GB, 5-inch LCD, phone
- Enhance workplace safetyEnhance workplace safety
- Exceptional Durability
- Loud and clear audio
- Large HD Screen
PNC460 I.S PoC Radio Data Sheet
PNC460 Key Features

ENHANCE WORKPLACE SAFETY
The PNC460U is designed for hazardous locations with potentially explosive gas and combustible dust, in compliance with the explosion-proof requirements for use in Class I II III, Division 1, Groups C–G, T4 and -20°C to +60°C. So the PNC460U can always provide reliable communications and efficient services for you, even in the extreme working environments.

EXTERNAL ANTENNA
Unlike the radios with the built-in antennathe PNC460U comes with the external antenna that has a 70% higher RX capability. So even in the area with weak signal strength, the PNC460U still conveys accurate information without missing any words.

PUSH-TO-TALK
With the Hytera HyTalk Pro app, the PNC460U can communicate with PDT, DMR, or TETRA radios over the 2G, 3G, LTE or WLAN network. It delivers instant one-to-one or one-to-group communications anywhere in the world once you press down the tactile and large PTT key. This ensures flow of information at all time, even during the most critical circumstances..

SIMPLIFY YOUR WORKDAY
With the Android 12 OS, the PNC460U delivers the familiar experience and ease of use that the professionalswantMore importantly, it provides an open and inclusive platform to run a wide variety of key apps making everyday tasks easier and faster.

POWERFUL CAMERA SYSTEM
The PNC460 has unmatched photography capabilities, thanks to a 50 MP rear camera HDR technology, and image stabilization algorithm. It can capture clear pictures and stable live videos in the field, and feed them to the command center in real time over the 2G, 3G, 4G, or WLAN network. This is invaluable for dispatcher to know what happened, significantly improving collaboration and outcomes.

LOUD AND CLEAR AUDIO
With the powerful speaker and sophisticated noise cancellation technologies, the PNC460U delivers crystal-clear audio in any noisy environment such as oil exploration sites, petrochemical plants,and refineries.
PNC460 Package Contents
- Handheld - Hytera PNC460 UL913 PoC Smartphone
- Battery - BP4501-Ex
- Power Adapter - PS2023
- USB Charging Cable - PC143
- Carrying strap - RO03
Compatible PTT Apps
HYTALK - Hytera's Recommended PTT App - is specifically designed for seamless integration with Hytera PoC radios. We provide full support for HYTALK to ensure the best experience. Please note that we do not offer support for third-party PTT apps.
PLEASE NOTE: While other PTT apps can provide basic PTT functionality on this PoC radio, they may not unlock its full capabilities. For support with these third-party apps, please contact the respective app provider directly. We only offer support for Inrico's iConvNet, and Hytera's HYTALK services.
- iConvNet - Tested
- Zello - Tested
- Walkie Fleet
- EchoLink
- Real PTT
- PoC Star
- And more...
Technical Information
Please contact us if you need more technical information about this product.
General
Frequency Range | GSM: 850/900/1800/1900 WCDMA: B1/B2/B3/B4/B5/B8 TDD-LTE: B34/B38/B39/B40/B41 (2496–2690 MHz) FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28 |
Dimensions | 164 mm × 77 mm × 23 mm |
Weight | 337g |
Operating System | Android 12 |
Memory | 6 GB RAM + 128 GB ROM |
Sensors | Acceleration/gyroscope/geomagnetic/opto-sensor |
Peripheral Interface | USB Type-C port; 3.5 mm audio jack |
Display | 5.0 inches, 1920 × 1080 |
Card Slots | 2 × Nano-SIM |
Camera | Rear: 50 MP; Front: 8 MP |
Battery | 4,580 mAh |
Video and Imaging
Video File Types | Mp4, 3GP |
Image File Types | JPG, GIF, BMP, PNG, WebP |
Video Resolutions and Frames Per Second | 1080p@60fps |
Environmental
Operating Temperature | -20℃to +60℃ |
Storage Temperature | -30℃to +70℃ |
ESD | IEC 61000-4-2, (ESD)±12 kV (Air); ±6 kV (Contact) |
Dust & Water Protection | IP68 |
Vibration, Drop & Shock | 1.5m |
Audio
Output | 3 W (max.) |
