Product Description
Stay connected in your home or office with Fusion4Home, the most powerful cell phone signal booster that provides strong, reliable connections for 5G/4G LTE voice, text and data throughout buildings in the most remote and challenging signal areas.
Fusion4Home features 2XP technology which doubles the uplink transmission power to maintain your cell signal throughout the weakest cell signal environments. Designed, assembled and tested in the USA with outstanding build quality, award-winning technologies, all-carrier compatibility, and world-class support, the Fusion4Home is the premier cell phone signal booster for homes and small offices.
- Improves text, voice and data signals for multiple simultaneous users on all North American cell carriers
- 5G Compatible– Fusion4Home boosts 5G & 4G LTE devices, including hotspots, while extending their battery life
- Reduces missed and dropped calls and increases data speeds
- 2XP technology offers 2x uplink power for best performance in the most remote signal areas
- Highest downlink gain for best indoor coverage & fastest data
- Designed, assembled and tested in the USA
- Industry best 3-year warranty and lifetime US-based tech support
Quick Install Guide (download)

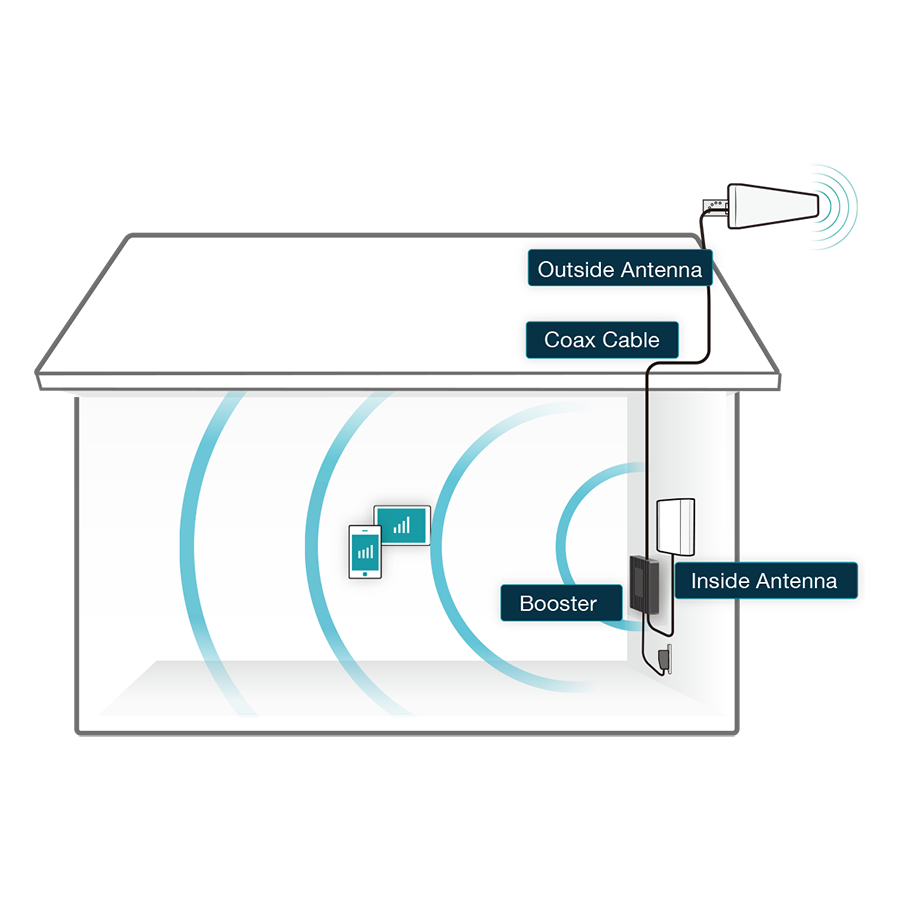

How It Works
A cell phone signal booster captures a nearby cellular signal, amplifies it, and broadcasts that signal in the space that needs a better cell phone signal. Signal booster kits work for small and large homes, offices, apartments, commercial buildings, and even cars, trucks, and RVs.
Regardless of the space, the specific components of a cell phone booster include:
- Outside Antenna - Installs on the exterior of your building in the location that receives the strongest signal from a nearby cell tower. This captures the strong signal outside of the building and pulls it into the building.
- Signal Booster - Receives the signal from the outside antenna and amplifies the signal strength before sending the improved cellular signal to the indoor antenna(s).
- Indoor Antenna(s) - These are installed inside of the building to distribute the amplified signal throughout your building or vehicle. Some buildings may require multiple indoor antennas and/or multiple boosters.
- Cables - Connects the outdoor antenna with the booster and the booster with the indoor antenna.
Technical Information
| Uplink Frequency Range (MHz): | 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included) |
| Downlink Frequency Range (MHz): | 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included) |
| Supported Standards: | CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards |
| Input/Output Impedance: | 75 Ohm (Outdoor) / 50 Ohm (Indoor) |
| Maximum Gain: | 72 dB |
| Noise Figure: | 8 dB |
| VSWR: | ≤2.0 |
| AC Power Transmitter: | Input AC 110 V, 60 Hz / Output DC 5-15 V |
| Maximum Output Power: | 1 Watt EIRP |
| Cable: | RG-6 / SC-240 |
| RF Connectors: | F-Female (Outdoor) / N-Female (Indoor) |
| Power Consumption: | <15W |
| Operation Temperature: | -4º F to +158º F |
| Dimensions: | 7.875" x 5" x 1.188" |
| Weight: | 2 lb. 3 oz. |

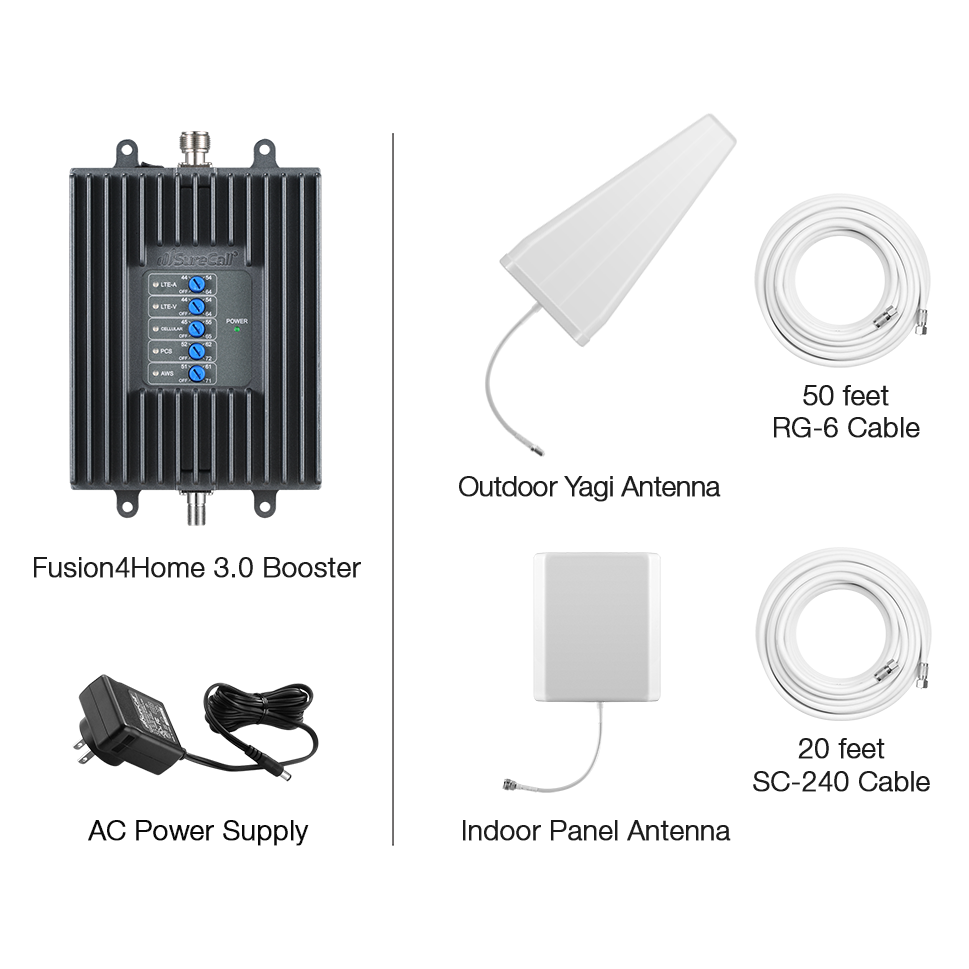

Kit Contents
The Booster Kit Includes The Fusion4Home Kit (SC-PolyH-72-YP), which includes:
- Booster
- Power Supply
- Inside Antenna - Directional Panel
- Outside Antenna - Directional Yagi
- Coax Cable - (50 ft. RG6 & 20 ft. SC-240)
