Product Description & Key Features
The Bill III is programmed with our NEW "P-Channels" which are five pre-configured memory channels set by President allowing targeted communications with other users. The radio also includes a new microphone featuring up/down activation and deactivation.

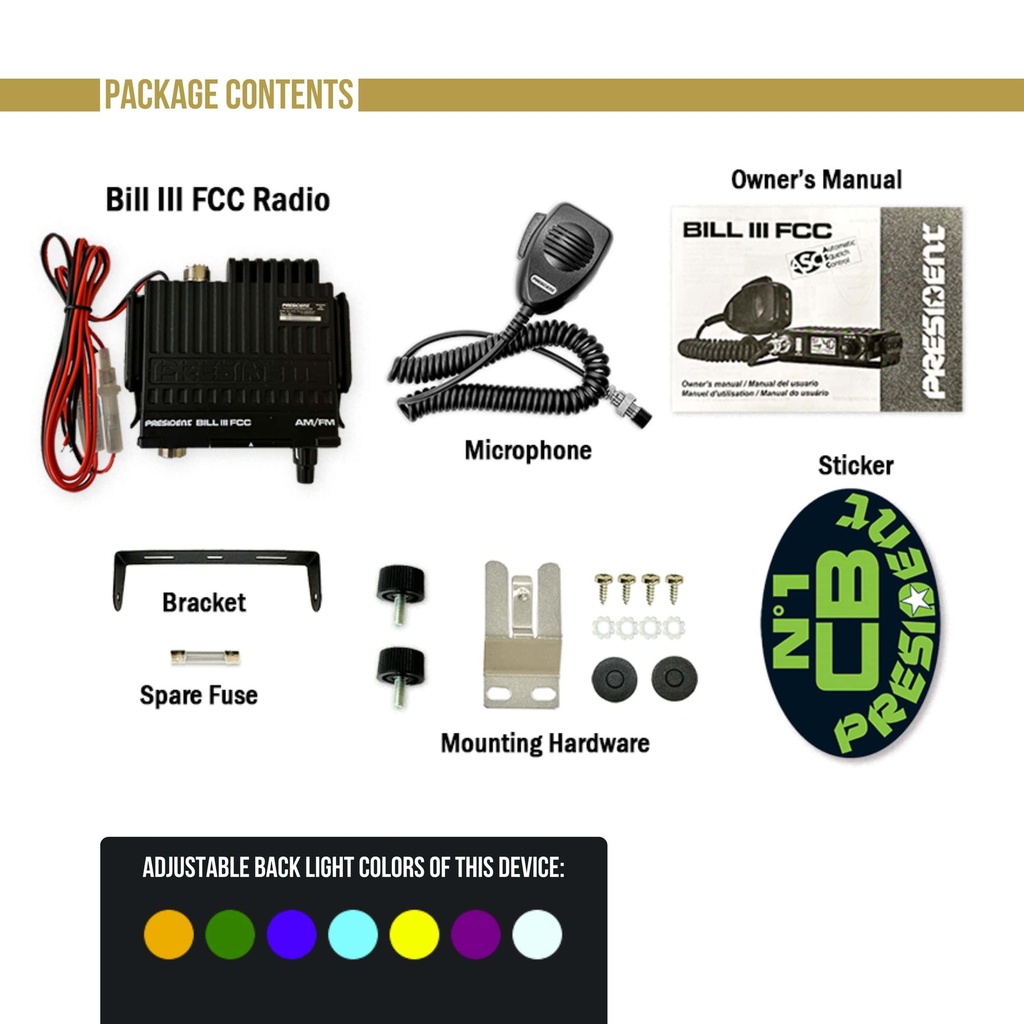

What's in the box: Transceiver, electret microphone with mounting cradle, quick fixation clip, screws and manual.
- The smallest FM CB out there
- Quick-release mounting bracket
- Weather channel with alerts
- 7-color user selectable display.
| Size: | 4.02" (W) x 3.94" (D) x 0.98" (H) |
| Weight: | 0.705 lbs |
| Antenna socket | SO-239 |
| Antenna impedance: | 50 ohms |
| Frequency ranges | from 26.965 MHz to 27.405 MHz |
| Power supply (Input Voltage) | 13.8 V |
| Microphone Up/Down | Activate / Deactivate |
| Microphone plug | front (6 pins) |
| Compatible microphone type | Electret , Dynamic |
| External loudspeaker jack |
|
| USB socket (front) | 5 V / 2,1 A |
| Display | LCD multifunction |
| Channel display | |
| Frequencies display |
|
| S-meter | Digital |
| Modulation modes | AM / FM |
| Volume adjustment and ON/OFF |
|
| Squelch | Manual squelch |
| Automatic Squelch Control (ASC) |
|
| Channel selector | Up / down |
| P CHANNELS |
|
| Key Beep | |
| Roger beep | |
| Key locking |
|
| Channel shortcuts | 2 , emergency channel (EMG) programmable |
| Channel Scan | |
Scan Skip |
|
Hands Free (Vox) |
|
TOT |
|
Filter ANL |
|
Filter NB |
|
Filter HI-CUT |
|
NRC |
|
Weather channels | from 162.400 MHz to 162.550 MHz |
Weather/Alert |
|
Transmission
| Frequency Allowance: | ± 200 Hz |
| Carrier Power: | 4W AM/FM |
| Transmission Interference: | < 4 nW (-54 dBm) |
Audio Response:
| 300 Hz to 3 kHz |
| Emitted Power in the Adj. Channel: | < 20 μW |
Microphone Sensitivity:
| 5.5 mV (elec.) / 2.2 mV (dyn.) |
| Drain: | < than 2 Amp |
Modulated signal distortion:
| 2%
|
ReceptionMax. sensitivity at 20 dB sinad | 0.5 μV - 113 dBm (AM) / 0.35 μV - 116 dBm (FM) |
| Frequency Response: | 300 Hz to 3 kHz
|
| Adjacent Channel Selectivity: | 60 dB
|
Maximum Audio Power:
| 2.5 W
|
| Squelch Sensitivity: | min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm |
Frequency Image Rejection Rate:
| 60 dB
|
| Intermediate Frequency Rejection. Rate: | 70 dB
|
Drain:
| 150 ~ 700 mA
|
