The Hytera PoC Bridge provides a single channel interconnect from PoC to DMR radios with a special hardware kit that interconnects and re-broadcasts communication between an MNC360 PoC mobile radio and an HM782 DMR mobile radio so that PoC radios can talk to DMR radios (UHF/VHF) in the same private network.
How it Works

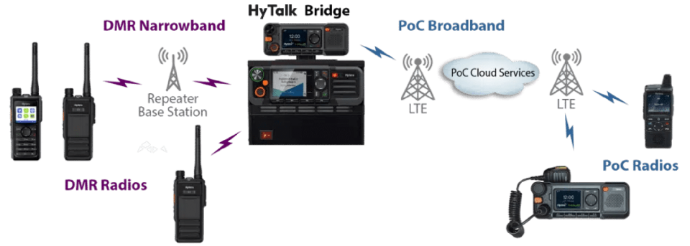

The MNC360 provides connectivity to Hytera PoC radios via LTE cellular or Wi-Fi internet access, and the HM782 provides connectivity to Hytera DMR Radios and repeaters via narrowband UHF and VHF frequencies. The HM782 can communicate with DMR radios via a repeater base station or directly with DMR radios.

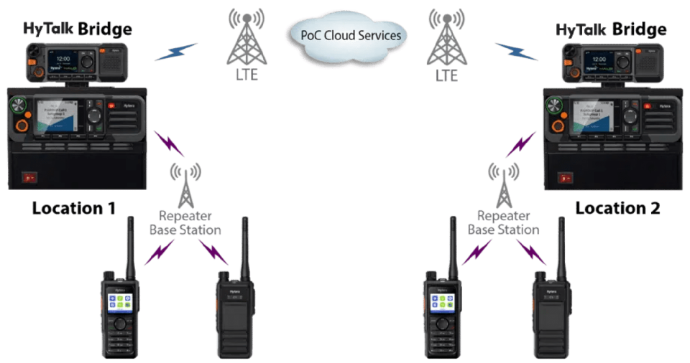

Hytera's PoC Bridge can also provide connectivity between two remote DMR radio systems over a PoC Broadband connection like shown in image 2 above.
Key Benefits of Hytera PoC Bridge
Compact and Cost-Effective
PoC Bridge is a compact hardware configuration that can be installed in a data closet or radio equipment rack with a minimal footprint. Both mobile radios are powered by a one dual-output power supply. PoC Bridge provides a single-channel interconnect at a much lower price than other systems that require additional hardware or servers.
Preserves Existing Radio System Investments
PoC Bridge provides a cost-effective method to add Hytera PoC radios with nationwide range to an existing DMR or Analog radio system.
Flexible Systems Inteconnectivity
The Push-to-Talk over Cellular broadband internet access can be through an LTE cellular network using a SIM card in the MNC360 or through an existing Wi-Fi network. Narrowband connectivity to Hytera DMR systems, third-party DMR standard compliant systems, or analog radio systems is provided through the HM782 using UHF or VHF frequencies.
PoC Bridge also provides connectivity between two remote radio networks over PoC internet access, and multiple PoC Bridge systems can be deployed for additional channels.
With Hytera Bridge, you no longer need to choose which system to use. Hytera enables you to create a hybrid system for a more reliable communications network. If you have any questions or are seeking products and solutions from Hytera, reach out to us for the best support.
