Chev/GMC 07-14 Dash Bracket Beside Radio

https://www.expertmobile.ca/web/image/product.template/5598/image_1920?unique=d87f109

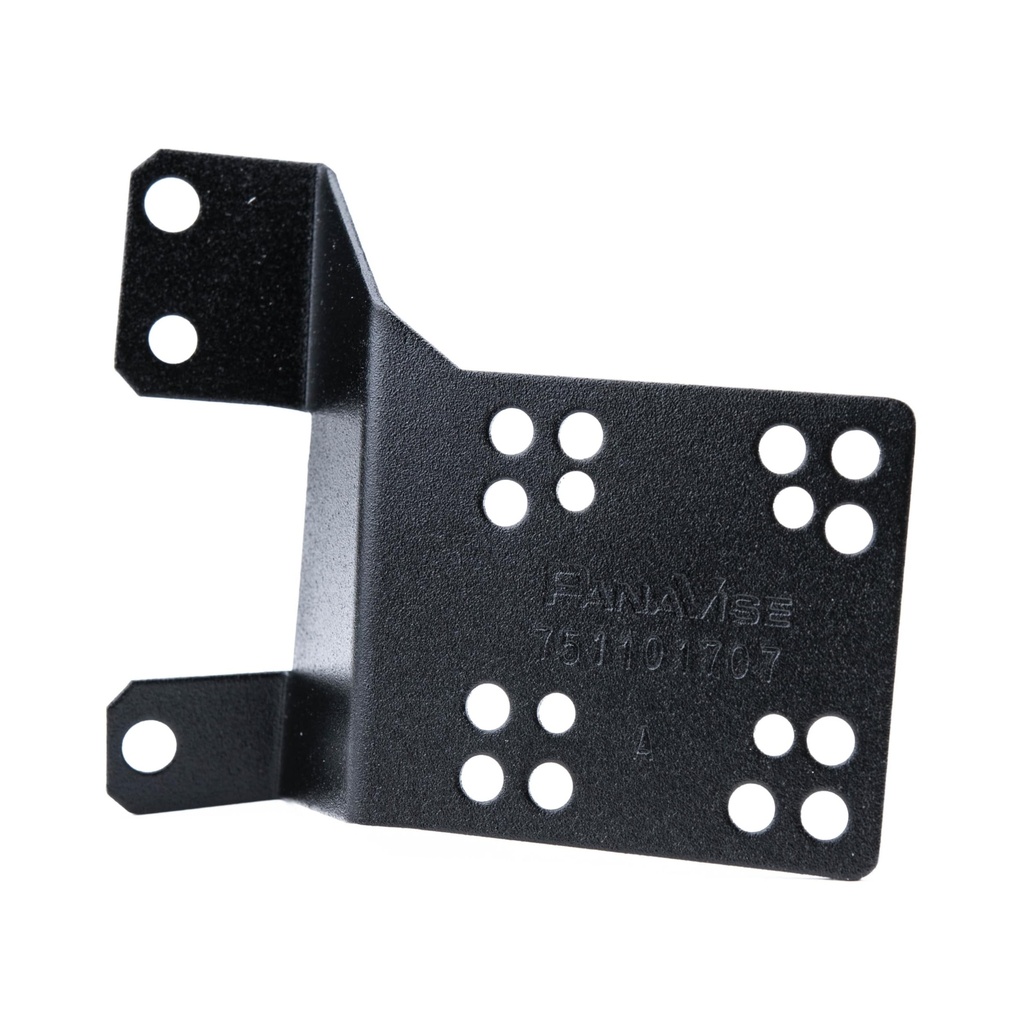

#751101707 - PanaVise Beside Radio Dash Bracket. Compatible with CHEV/GMC, with Air Vents Above Radio (07-14).

37.95 37.95 CAD 37.95

37.95

Not Available For Sale

    This combination does not exist.

    Product Description

    This PanaVise cell phone and media mount is compatible with CHEVY / GMC (With Air Vents Above Radio). Find more specifications below or let us know if you need more information.



    Read instructions completely prior to starting installation. All InDash Mounts are designed so that after installation, phone is facing normal driver position for lefthand drive vehicles. This mount is not designed to be used in foreign countries with right-hand drive vehicles. Use extreme care when working around the plastic components on the dash. Excess force, can cause breakage of the plastic components.

    Installation Instructions

    • STEP #1: These clips are tight, and will take some force to remove them. Also, the top strip above the bezel is a part of the bezel. With a Wide Plastic Dash Tool, CAREFULLY! remove the radio/climate control bezel by starting at the right side by the corners pulling to release (1) clip at a time. Continue working your way around the bezel until all (7) clips are released. Set the bezel aside.
    • STEP #2: Place InDash by PanaVise Mount on to the right side edge of the dash cavity. Be sure the edge of the mount is flat against the side. Install the (3) screw provided into the dash. Press the mount to the right before tightening.
    • STEP #3: Replace the bezel carefully.


    INSTALLATION IS NOW COMPLETE. ENJOY YOUR NEW INDASH by PANAVISE MOUNT.


     Download Instruction Manual

    Specifications


    Part number751101707
    MFG.
    CHEVY / GMC
    Models & Years
    • CHEVY-1500 Silverado Vents Above Radio (07-13)
    • CHEVY-2500/3500HD Silverado Vents Above Radio (07-14)
    • CHEVY Tahoe (07-14)
    • CHEVY Surburban (07-14)
    • CHEVY Avalanche (07-13)
    • GMC-1500 Sierra (07-13)
    • GMC-2500/3500HD Sierra (07-14)
    • GMC Sierra Denali (07-14)
    • GMC Yukon (07-14)
    Mounting locationRight Side of Radio Cavity KR
    Tools required for installation
    • Dash Tool - Plastic (Wide)
    • Phillips screwdriver
    Parts Included
    • (1) S7-1892 Mount
    • (3) A - #8x9/16" Needle Pt. Screw
