Product Description

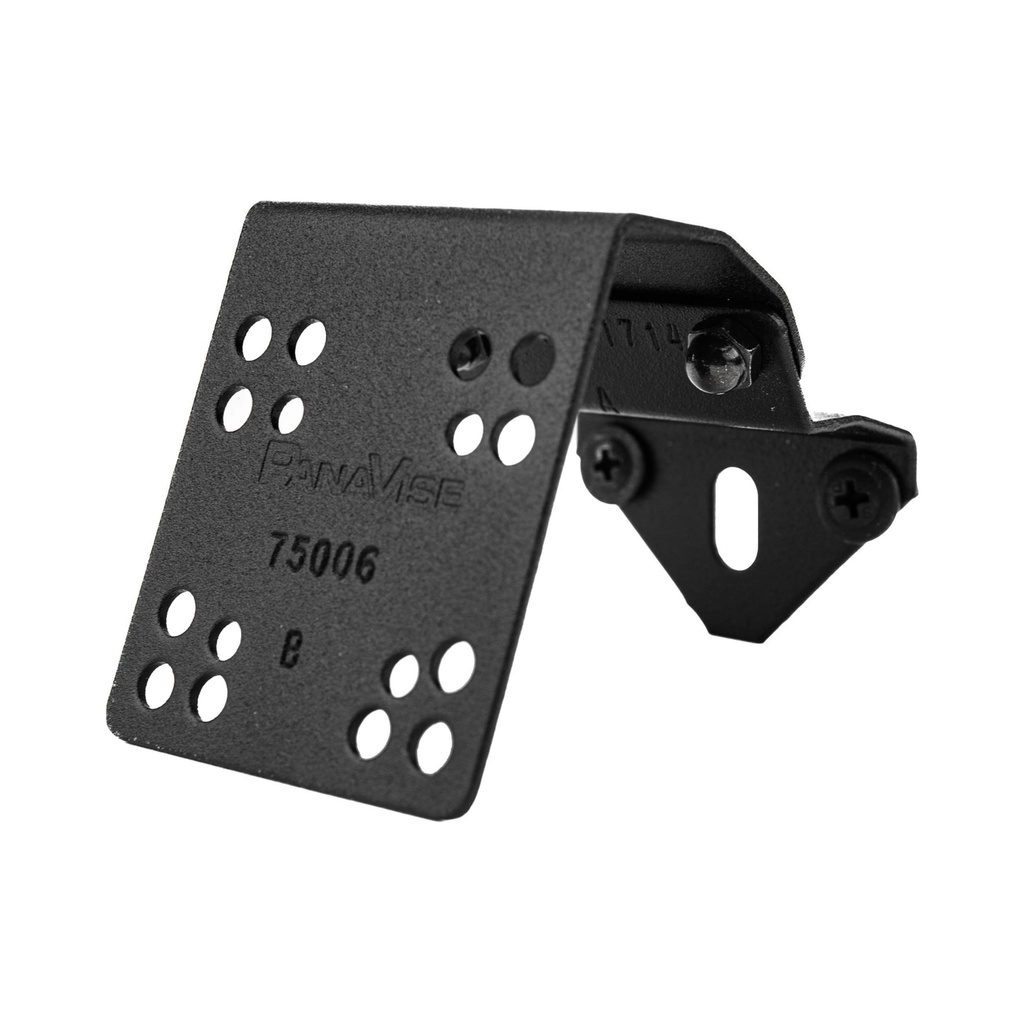

This PanaVise cell phone and media mount for CHEVY / GMC 1500, 2500, 3500HD (14-19). Find more specifications below or let us know if you need more information.
Read instructions completely prior to starting installation. All InDash Mounts are designed so that after installation, phone is facing normal driver position for lefthand drive vehicles. This mount is not designed to be used in foreign countries with right-hand drive vehicles. Use extreme care when working around the plastic components on the dash. Excess force, can cause breakage of the plastic components.
Installation Instructions
- STEP #1: With the Plastic Dash Tool, remove the bezel that surrounds the radio/ climate control. Continue working your way around the bezel until all clips are released. Disconnect plug(s). Set the bezel aside.
- STEP #2: Remove either 9/32(7mm) screw on the top of the radio cavity. Place the InDash by PanaVise Mount on top edge of the dash cavity. Be sure the edge of the mount is flat against the side. Re-Install the (1) factory screw, tighten, and (2) provided screws into the InDash Mount. Press the mount up to the edge of the dash cavity before tightening all the screws.
- STEP #3: Replace the bezel and install the top part (75006) with 5/16" wrench.
INSTALLATION IS NOW COMPLETE. ENJOY YOUR NEW INDASH by PANAVISE MOUNT.
Specifications
| Part number | 751101714 |
| MFG. | CHEVY / GMC |
| Models & Years |
|
| Mounting location | Above Radio/Display PU |
| Tools required for installation |
|
| Parts Included |
|
