Product Description

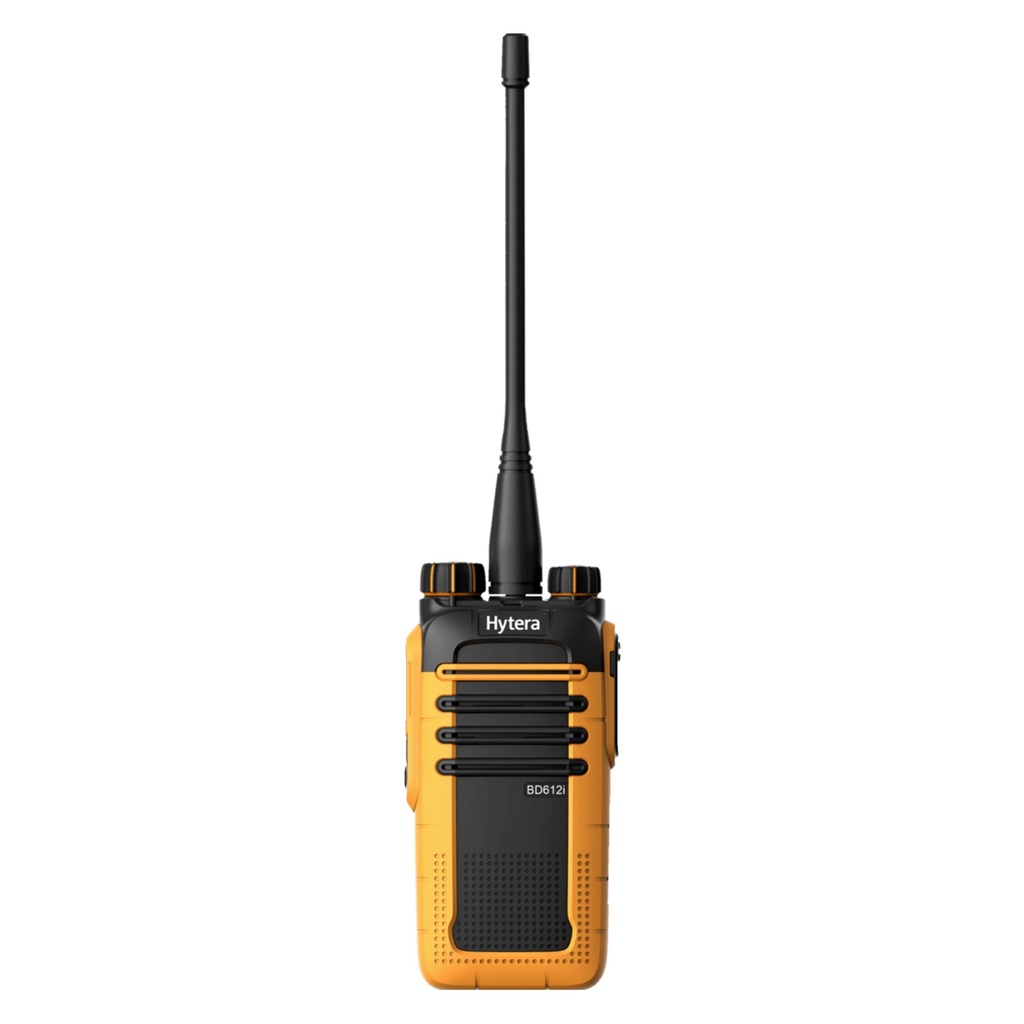

The BD612i digital radios are the next generation of the TC6 analog radios, and improves on the legendary Hytera ruggedness, performance, and value.
- Built rugged for the most demanding environments
- Digital audio quality for clear calls on noisy job sites
- Powerful battery for reliable operation over long shifts
- Extended range to improve efficiency and reduce infrastructure costs
Improved Digital Performance
The BD612i radios feature digital noise cancellation for improved audio quality, and long battery life for up to 16 hours of operation. Digital encoding and high output power provides excellent reception and extended range.
Light and Compact
Weighing less than 9 ounces, the light and compact design makes the BD612i easy to carry and operate.
Rugged and Reliable
The BD612i is built to the MIL STD-810-G standard for shock and temperature endurance, and complies with the IP66 standard for water and dust resistance.
BD612i Non I.S Radio Data Sheet
BD612i Owners Manual
Key Features
HIGH QUALITY AUDIO
Audio equalizer adjusts low, mid, and high frequency gain provides the best audio performance in noisy job sites or quiet offices.
ERGONOMIC AND EASY TO USE
Tactile buttons for no-look PTT and emergency calling, and simple operation with channel and power/volume knobs. LED Indicator shows transmit and receive status in green and red lights.
RELIABLE AND DURABLE
Compliant with MIL-STD-810-G for impacts and vibration, and IP66 rated for water and dust resistance.
ANALOG OR DIGITAL OPERATION
The BD612i operates in analog or digital mode, and allows switching between the two modes for communication with analog radios. This enables simple and cost-effective migration path to digital systems.
LONG-LIFE BATTERY
Powerful 1500mAh Lithium Ion battery delivers up to 16 hours of operation, and an optional 2000mAh Lithium Ion battery delivers up to 22 hours of operation.
SCANNING
Allows listening to communications on other channels.
Technical Information
Please contact us if you need more technical information about this product.
General
Frequency Range | VHF: 136-174 MHz |
Channel Capacity | 48 Channels (24 Analog, 24 Digital) |
Zone Capacity | 3 Zones with 16 Channels per Zone |
Channel Spacing | 25/12.5KHz |
Operational Voltage | 7.2V |
Li-Ion Battery | 1500mAh Standard |
Battery Service Life (5/5/90) | 1500mAh: 16 hours Digital, 12 hours Analog, |
Weight | 8.5 ounces (240g) |
Dimensions (H x W x D) | 4 1/4” x 2 1/8” x 1 5/32” (108 x 54 x 29mm) |
Frequency Stability | ±0.5 ppm |
Antenna Impedance | 50Ω |
Receiver
| Digital Sensitivity | 0.22μV / BER 5% |
Analog Sensitivity | 0.22μV (Typical) (12dB SIN AD) 0.4μV (20dB SIN AD) |
Adjacent Channel Selectivity | TIA-603: 65dB @ 12.5kHz, 70dB @ 25kHz |
Spurious Response Rejection | TIA-603: 70dB @ 12.5/25kHz |
Intermodulation | TIA-603: 65dB @ 12.5/25kHz |
Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
Rated Audio Power Output | 0.5W |
Rated Audio Distortion | ≤5% |
Audio Response | +1 ~ -3dB |
Conducted Spurious Emission | <-57dBm |
Transmitter
| RF Power Output | VHF High Power: 5W VHF Low Power: 1W |
FM Modulation | 11K0F3E @ 12.5kHz 16K0F3E @ 25kHz |
4FSK Digital Modulation (Digital Emissions Designator) | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
Conducted/ Radiated Emission | -36 dBm 1 GHz |
Modulation Limiting | ±2.5kHz @ 12.5kHz ±5.0kHz @ 25kHz |
FM Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
Adjacent Channel Selectivity | 60dB @ 12.5kHz, 70dB @ 25kHz |
Audio Response | +1 to -3dB |
Audio Distortion | ≤3% |
Digital Vocoder Type | AMBE++ |
Digital Protocol | ETSI-TS102 361-1,-2,-3 |
Environmental
| Operating Temperature | -22°F to +140°F (-30°C to +60°C) |
Storage Temperature | -40°F to +185°F (-40°C to +85°C) |
ESD | IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air |
Dust and Water Ingress | IP66 Standard |
Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard |
