Product Description

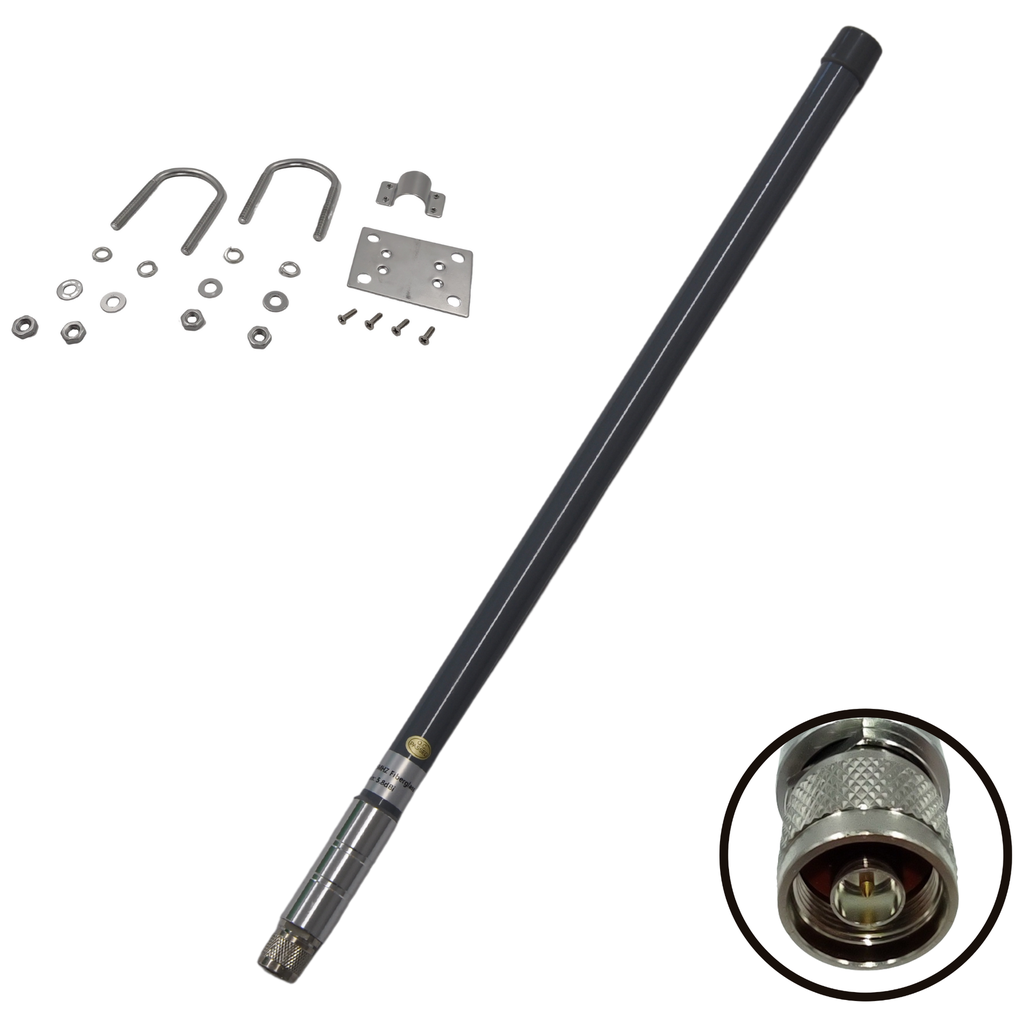

Helium Tech 5.8 dBi 915 MHz outdoor fiberglass antenna. This antenna features an integrated type N Male connector. Included is a wall mounting bracket that can also be used with the supplied clamps for pipe mounting.
This antenna is compatible with the Bobcat 300, RAK V2, Nebra Indoor, SenseCAP M1, Kerlink, Linxdot, Syncrob.it, Helium Hotspot, Kerlink. The antenna will also require an N Female to RP SMA cable assembly.
Technical Information
Please contact us if you want more information.
| Type: | Fiberglass Antenna |
| Frequency: | 902-928 MHz |
| Bandwidth: | 26 MHz |
| Gain: | 5.8 dBi |
| Horizontal Beamwidth: | 360° |
| Vertical Beamwidth: | 30° |
| VSWR: | ≤1.5 |
| Radiation Properties: | Omni-Directional |
| Power Handling: | 100W |
| Polarization: | Vertical |
| Impedance: | 50 Ohms |
| Lightning Protection: | DC Ground |
| Length (mm): | 50 cm |
| Connector: | N Male |
| Mount Style: | Wall or Pole Mount |
| Color: | Gray |
