Product Description
Improves text, voice and data signals for multiple simultaneous users on all North American cell carriers. The 10K Plus features a built-in antenna and a high-gain outdoor antenna. With 68 dB max gain, it delivers cell signals for medium or large homes, so that users can enjoy constant cell phone coverage, better voice quality, greater hotspot reception, and faster internet speeds.
Networks: Band 12/17, Band 13, Band 5, Band 25/2, Band 4
Coverage: 3,000 - 6,000 Sq. Feet
Max.Gain: 65 dB
- User Manual HiBoost App Monitor
- Two indoor antennas
- Better talk, text & stream guaranteed
- Enhanced coverage up to 6,000 sq ft
- Compatible with all phones, iPads, tablets and hotspots on all US carriers
- 5G Compatible
What makes Plus Pro different?
Built-in Antenna

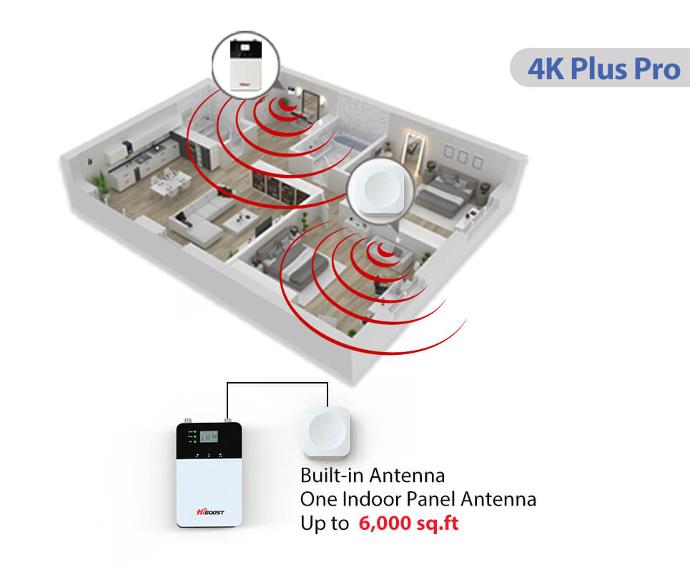

Two antennas, double coverage for more rooms
The two indoor antennas!
The HiBoost 4K Plus PRO Cell Signal Booster is an even more powerful version of the 4K Plus. In addition to a built-in indoor antenna, it comes with an extra interior antenna, which expands the coverage to up to 6,000 sq ft and effectively improves cellular reception in multiple rooms or homes of two floors.
END DROPPED CALLS, GET FASTER DATA SPEEDS
With up to +65 dB gain of amplification, the signal amplifier improves 3G & 4G LTE &5G cell service for all your wireless devices. Stronger cellular connectivity lets you enjoy clearer calls and faster internet!
WITHIN COVERAGE WHEREVER YOU ARE
Wherever you live, urban, suburban or rural areas, whatever phones and service provider you’re using, wherever you need coverage at your home, 4K Plus Pro Cell Signal Booster gets you covered. It works with all kinds of smartphones, hotspots, tablets, notebooks on all US and Canadian providers.
BOOST MORE THAN CELLULAR SIGNAL
Enhancing your cellular connectivity boosts your business productivity and lets you stay connected with those who matter. Your entertainment never stops with loading screens! It also provides greater peace of mind in any emergencies with constant and reliable service. No Wi-Fi is needed and there is no monthly subscription fee.
SET-UP AND MONITORING VIA HIBOOST APP
HiBoost is the first to provide an all-in-one signal assistant, the Signal Supervisor App. It’s a free and user-friendly app for users for simpler installation and convenient technical support. It has served and earned a stellar reputation from more than 100,000 users over the past decade!
How It Works
The 4K Plus features a built-in antenna and a high-gain outdoor antenna. With 68 dB max gain, it delivers cell signals for medium or large homes, so that users can enjoy constant cell phone coverage, better voice quality, greater hotspot reception, and faster internet speeds.
- STEP 1: The outdoor antenna communicates and captures cell signals from the cell tower
- STEP 2: The booster receives the outside signal, amplifies it, and send it to the inside antenna
- STEP 3: The inside antenna broadcasts the amplified signal to the area that needs reception
Coverage to Expect
With 5 bars of outside signal
With 3-4 bars of outside signal
With 2 bars of outside signal
Technical Information
| SKU | HPL10652 |
|---|---|
| WORKING BANDS | Band 12/17 / Band 13 / Band 5 / Band 25/2 / Band 4 |
| UL FREQUENCY RANGE | 698-716 / 776 – 787 / 824-849 / 1850-1915 / 1710-1755 |
| DL FREQUENCY RANGE | 728-746 / 746 – 757 / 869-894 / 1930-1995 / 2110-2155 |
| SUPPORTED STANDARDS | CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all other cellular standards |
| MAXIMUM GAIN | 68db |
| MAXIMIUM OUTPUT POWER | DL 10 dBm |
| MGC(STEP ATTENUATION) | ≥ 25 db/ 1 db step |
| I/O PORT | N-Female |
| IMPEDANCE | 50 ohm |
| ENVIRONMENT CONDITION | IP40 |
| DIMENSIONS | 6 in×9.7 in ×1.4 in /152 mm×246 mm×36 mm |
| WEIGHT | ≤ 5.0 lb / 2 kg |
| POWER SUPPLY | Input AC 100~240 V, 50/60 Hz, Output DC 12 V/3 A |
Kit Contents
The Hiboost 4k Plus kit includes:
