Product Description

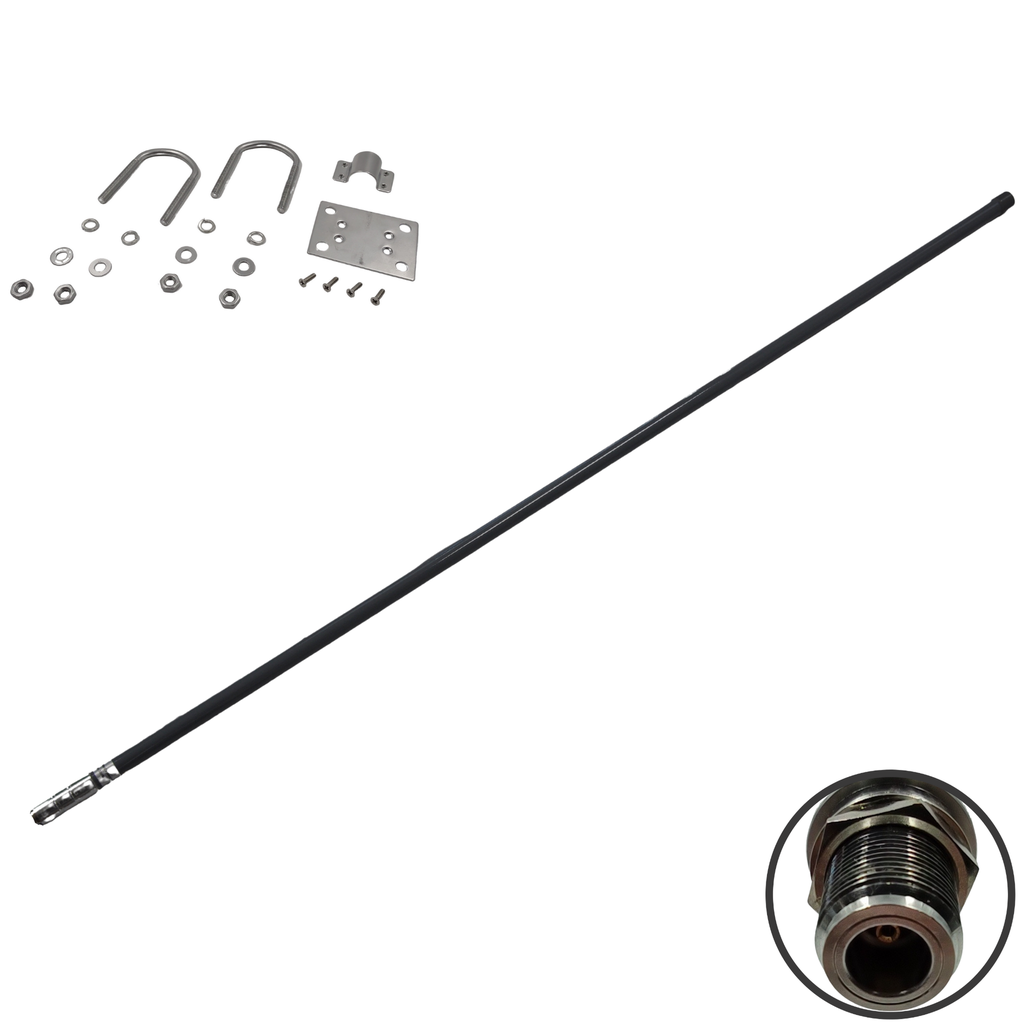

Helium Tech 10 dBi 915 MHz outdoor fiberglass antenna. This antenna features an integrated type N Female connector. Included is a wall mounting bracket that can be also used with the supplied clamps for pipe mounting.
This antenna is compatible with the Bobcat 300, RAK V2, Nebra Indoor, SenseCAP M1, Kerlink, Linxdot, Syncrob.it, Helium Hotspot, Kerlink. The antenna will also requires an N Male to N Male cable assembly and either a short N Female to RP SMA cable or adaptor.
Technical Information
Please contact us if you want more information.
Type: | Fiberglass Antenna |
Frequency: | 902-928 MHz |
Bandwidth: | 26 MHz |
Gain: | 10 dBi |
Horizontal Beamwidth: | 360° |
Vertical Beamwidth: | 8° |
VSWR: | ≤1.5 |
Radiation Properties: | Omni-Directional |
Power Handling: | 100W |
Polarization: | Vertical |
Impedance: | 50 Ohms |
Lightning Protection: | DC Ground |
Length (mm): | 130 cm |
Connector: | N Female |
Mount Style: | Wall or Pole Mount |
Color: | Gray |
