Product Description

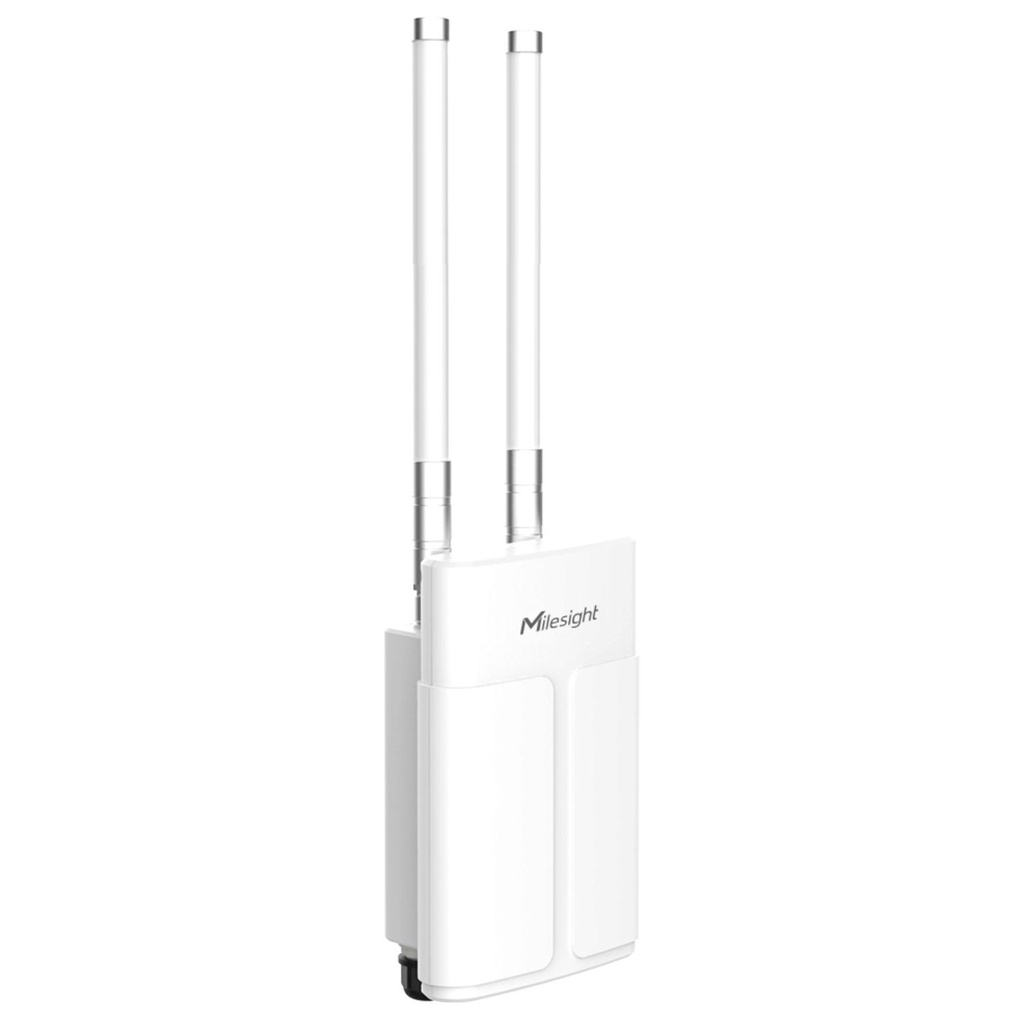

UG67 Outdoor LoRaWAN® Gateway.
UG67 is a robust 8-channel outdoor LoRaWAN® gateway. Adopting SX1302 LoRa chip and high-performance quad-core CPU, UG67 supports connection with more than 2000 nodes. UG67 has line of sight up to 15 km and IP67 waterproof case, which is ideally suited to smart agriculture, smart metering and
many other outdoor applications.
UG67 supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular, but also has integrated mainstream network servers (such as TTI, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment.
- IP67 Rating
- 64-bit Quad-Core Processor
- New SX1302 LoRa Chip
- Built-in Supercapacitor
- Multiple Backhaul Connectivities
- Embedded Network Server
- Compatible with Multiple Network Servers
- Global LoRaWAN® Frequency Plans
Find more in features and specifications below or let us know if you need more information.
Application Example
Features
- Quad-core industrial processor with large memory
- Equipped with SX1302 chip, handling a higher amount of traffic on lower consumption
- 8 half/full-duplex channels IP67 waterproof enclosure and industrial design for harsh environment applications
- Wall or pole mounting (optional)
- PoE or DC supply (optional)
- Capacitor for sending alarms in case of power failure
- Multi backhaul backups with Ethernet, cellular (4G/3G) and Wi-Fi
- Enable security communication with multiple VPNs like IPsec/OpenVPN/LT2P/PPTP/DMVPN
- Devicehub and Milesight IoT Cloud provide easy and centralized management of remote devices
- Compatible with mainstream network servers like The Things Industries, ChirpStack, Actility, Everynet, etc.
- Detects and analyzes noise level and provides intuitive diagram for deployment
- Built-in network server and MQTT/HTTP/HTTPS API for easily integration
- Supports BACnet/IP to integrate LoRaWAN data to BMS system easily
- Embedded Python SDK for users in secondary development
- Fast and user-friendly programming by Node-RED development tool
Downloads
UG67 LoRaWAN® Gateway Datasheet
UG67 LoRaWAN® Gateway User Guide
Specifications
Dimensions are in mm.
Package Contents
*Note: Contact us if you need any other special accessories or customized accessories.
Hardware
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
Memory | 512 MB DDR4 RAM |
Flash | 8 GB eMMC |
LoRaWAN
| Antenna Connector | 2 × 50 Ω N-Female External Connectors |
Channel | 8 (Half/Full-duplex) |
Frequency Band | CN470/ IN865/ EU868/ RU864/ US915/ AU915/ KR920/ AS923 - 1 & 2 & 3 & 4 |
Sensitivity | -140 dBm Sensitivity @ 292 bps |
Output Power | 27 dBm Max |
Protocol | V1.0 Class A/ Class B/ Class C and V1.0.2 Class A/ Class B/ Class C |
LBT1 | Supported |
Ethernet Interface
| Port | 1 × RJ45 (PoE PD Supported) |
Physical Layer | 10/ 100/ 1000 Base-T (IEEE 802.3) |
Data Rate | 10/ 100/ 1000 Mbps (Auto - Sensing) |
Interface | Auto MDI/ MDIX |
Mode | Full or Half Duplex (Auto - Sensing) |
Wi-Fi Interface
| Antenna | Internal Antenna |
Standards | IEEE 802.11b/g/n, 2.4 GHz |
Mode | AP or Client Mode |
Security | WPA/ WPA2 Authentication, WEP/ TKIP/ AES Encryption |
Tx Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) |
Cellular Interface
| Antenna | Internal Antenna |
| SIM Slot | 1 (mini SIM - 2FF) |
GPS
| Antenna | Internal Antenna |
| Sensitivity | -167 dBm @ Tracking, -149 dBm @ Acquisition, -161 dBm @ Re-acquisition |
Position Accuracy | <2.5m CEP |
Others
| Reset Button | 1 × RST |
| Console Port | 1 × Type-C |
LED Indicators | 1 × SYS, 1 × LoRa, 1 × LTE |
Built-in | Watchdog, RTC, Timer |
Software
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, BACnet/IP, etc. |
VPN Tunnel | OpenVPN/ IPsec/ PPTP/ L2TP/ GRE/ DMVPN |
Firewall | ACL/ DMZ/ Port Mapping/ MAC Binding/ URL Filter |
Management | Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud, Yeastar Workplace Platform |
Reliability | WAN Failover |
App | Python SDK, Node-RED |
Power Supply and Consumption
| Power Supply | 1 × 802.3af PoE input DC Power (6~12 V) via M12 Connector |
Power Consumption | Typical 3.6 W, Max 4.8 W |
Physical Characteristics
| Ingress Protection | IP67 |
| Dimensions | 240 x 164 x 90.9 mm (9.45 x 6.46 x 3.58 in) |
| Installation | Wall or Pole Mounting |
Environmental
| Operating Temperature | -40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
Approvals
| Regulatory | CE, FCC, RCM,TELEC, ANATEL |
| Environmental | RoHS |
