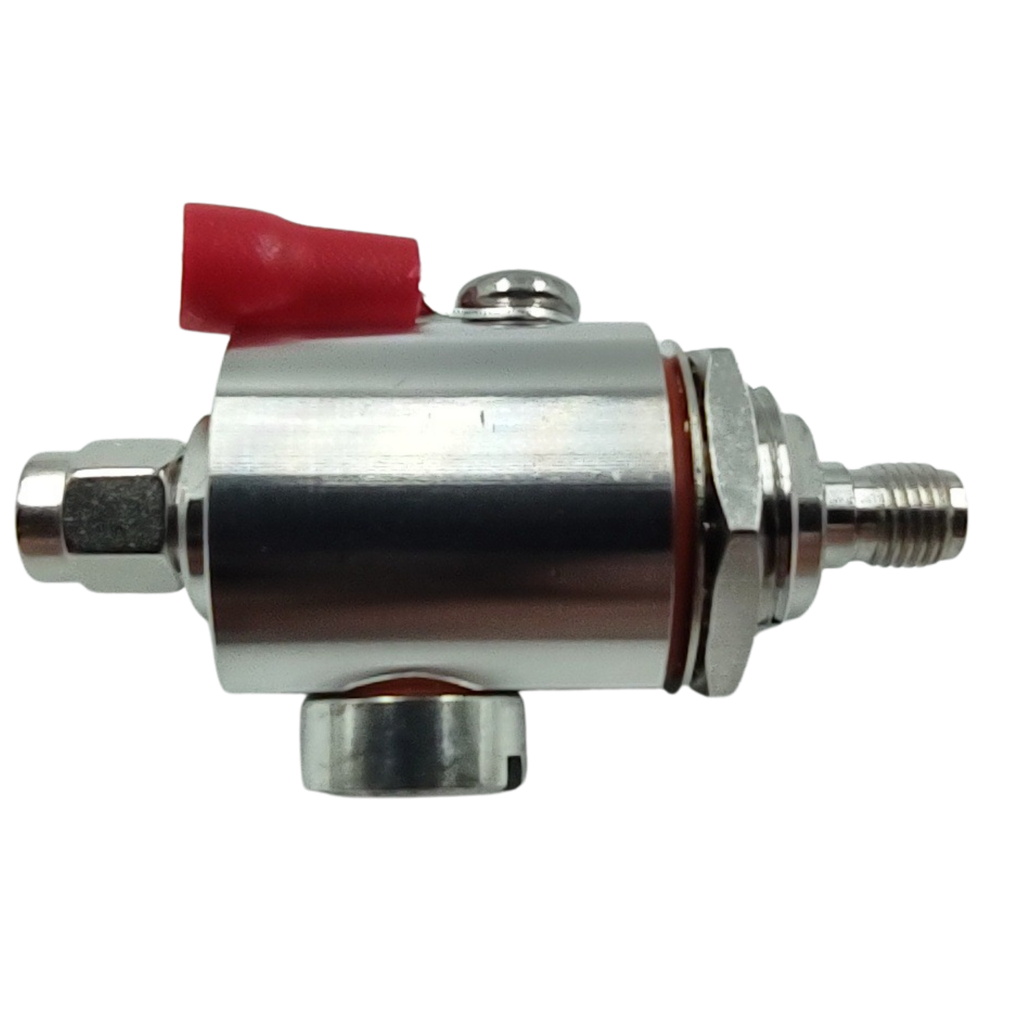

RP SMA Male to RP SMA Female Lightning/Surge Protector

RP-SMA Male to RP-SMA Female Canadian Wireless Supply lightning/surge protector/arrestor is made to convert your existing connector to the one that's necessary on the other end, and at the same time protects your equipment (router, modem, cell booster, computer, laptop) from lighting strikes. Made only with high-quality materials - tri-metal brass plated body, bronze contacts and gold center conductor for a minimum signal loss and reliable connection all the time. 50 Ohm impedance makes a coaxial surge protector an ideal solution for all 50 Ohm network boosters and repeaters. It also features a replaceable gas discharge tube that protects connected equipment from electrical surges caused by lightning strikes.

Technical Specifications

• RP-SMA Male to RP-SMA Female
• Freq Range DC-6GHZ
• Protection : Gas Discharge Tube
• Insersion Loss: <0.2
• Return Loss: >20 dB
• Discharge Current: 20 kAMP
• Protection Level: 650 V
• Impedance: 50 OHMS
• Max Power: 25 W
• Ingress Protection: IP 65
• Grounding: Screw/LUG Y
• Body: Brass
• Contacts: Bronze
• VSWR: <1.2:1
• Max Current Load: 10A
• Nominal Discharge Current (kAMP): 5 kAMP
• Max Discharge Current (kAMP): 20 kAMP
• Impulse Current (kAMP): 2.5 kAMP
• Operating Temp (degrees C): (-40 to +85) C
