Product Description

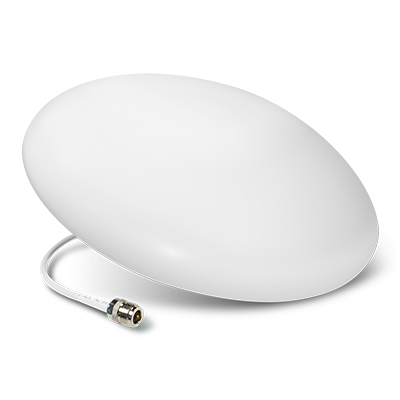

Designed to blend seamlessly into any environment, the 5G Ultra Thin Antenna is a low-profile ceiling antenna for in-building cell phone signal boosters. The ultra-wideband indoor antenna is omni-directional and transmits and receives signals in a 360-degree pattern. Ultra-Thin is designed to cover 2G/3G/4G/5G and WLAN systems for Cellular, PCS, AWS, and LTE frequencies. Some features include the following:
- N-Female connector
- 3.5 dBi / 7.5 dBi
- 50 Ohm
- Wide band: 2G, 3G, 4G, 5G (617 – 2700 MHz)
- Two mounting options for all ceiling types
Product Specifications
Please contact us if you need more information
| Part Number | SC-528W |
| Frequency | 617-697 / 698-960 / 1710-2700 MHz |
| Input Impedence | 50 Ohm |
| Max Gain | 3.5 dBi / 7.5 dBi |
| Non-Circularity | ±2.5 dB / ±4.0 dB |
| Beamwidth | 360 degrees |
| VSWR | ≤1.7 |
| Polarization Type | Vertical |
| Radiation Pattern | Omni-Directional |
| Connector Type | N-Female |
| Height | 2.11 in (53.5 mm) |
| Diameter | 12.2 in (310 mm) |
| Weight | 1.21 Ibs (550 g) |
| Cover Material | PC + ABS |
| Mount Type | Ceiling |
