Product Features
SureCall offers couplers in various options, including -6 dB, -10 dB, -15 dB, and -20 dB, all compatible with 2G, 3G, 4G, and 5G signal boosters across the 600 MHz to 2700 MHz range for all North American carriers. These couplers, also known as taps, play a crucial role in maintaining signal strength in a cell phone signal booster deployment with a series of indoor antennas covering a considerable distance. The purpose of these components is to unevenly distribute the incoming and outgoing signals, minimizing signal loss from one port. This ensures that the subsequent broadcast antenna in the setup receives a satisfactory signal despite the inherent signal loss from cables and multiple antennas.

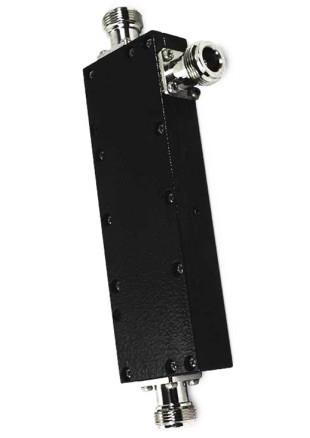

- -10 dB Coupler
- Power Split 67% Pass Thru / 33% Coupling
- High In-Band Isolation and Low VSWR
- Low Passive Intermodulation
- Low Insertion Loss
- Power Handling up to 200 Watt
- For Use in Indoor Applications.
Technical Information
Please contact us if your need more information.
| Part Number | SC-C-10 |
| Insertion Loss | ≤0.8 dB |
Coupling Degree (dB) | -10dB |
Coupling Accuracy (±) | 1.2 |
Isolation | ≥29 |
IP Grade | IP64 |
| Coupling Port Loss | 6 ± 0.6 dB |
| Directivity | ≥20 dB |
| Frequency Range | 600 - 2700 MHz |
| VSWR | ≤1.3:1 |
| Impedance | 50 Ohm |
| Power Capacity | 200W |
| Connector | N-Female |
| Operation Temperature | -31°F to 140°F |
| Dimensions | 120 x 40 x 17 mm (Without Connectors) |
Weight | 7.4 oz |
Colour | Black |
