SureCall Fusion Professional 2.0 - 8 Band Booster Kit

https://expertmobile.odoo.com/web/image/product.template/6113/image_1920?unique=bef0fd6
(0 review)

The most powerful cell phone signal booster for mid-size buildings providing strong, reliable connections in areas up to 8,000 sq. ft.

999.99 999.99 CAD 999.99

999.99

    This combination does not exist.

    Product Description

        RESIDENTIAL SYSTEMS 2021 PICKS AWARD WINNER

    Stay connected with Fusion Professional, the most powerful cell phone signal booster for mid-size buildings that provides strong, reliable connections in areas up to 8,000 sq. ft. It significantly improves 5G/4G LTE connectivity for all North American cell carriers with built-in 2XP technology that doubles uplink transmission power to maintain the cellular connection to the tower in the weakest signal environments. Assembled and tested in the USA with outstanding build quality, award-winning technologies, all-carrier compatibility, and world-class support, the Fusion Professional is the premier cell phone signal booster for the mid-size commercial buildings and large residences.

    • Significantly improve cellular connectivity for all North American cell carriers inside any building, up to 8,000 sq ft.
    • Exclusive 2XP technology delivers twice the signal power to the tower when compared to the closest competitor to keep all devices connected in weak signal areas
    • SureIQ balances incoming signals, ensuring 24/7 uptime and continuous peak performance in both urban and rural areas
    • Highest system gain in its class combined with our strongest outdoor yagi antenna ensures constant connectivity in even the most challenging signal environments
    • 5G compatible– Fusion Professional supports 5G & 4G LTE phones and devices, including MiFi hotspots and cellular datahubs
    • Designed, assembled and tested in the USA. FCC and IC-approved amplifiers built with the highest quality materials for longevity and connectivity when you need it most
    • Includes 24/7 lifetime US-based tech support and 3-year manufacturer's warranty

    User Guide

    Data Sheet

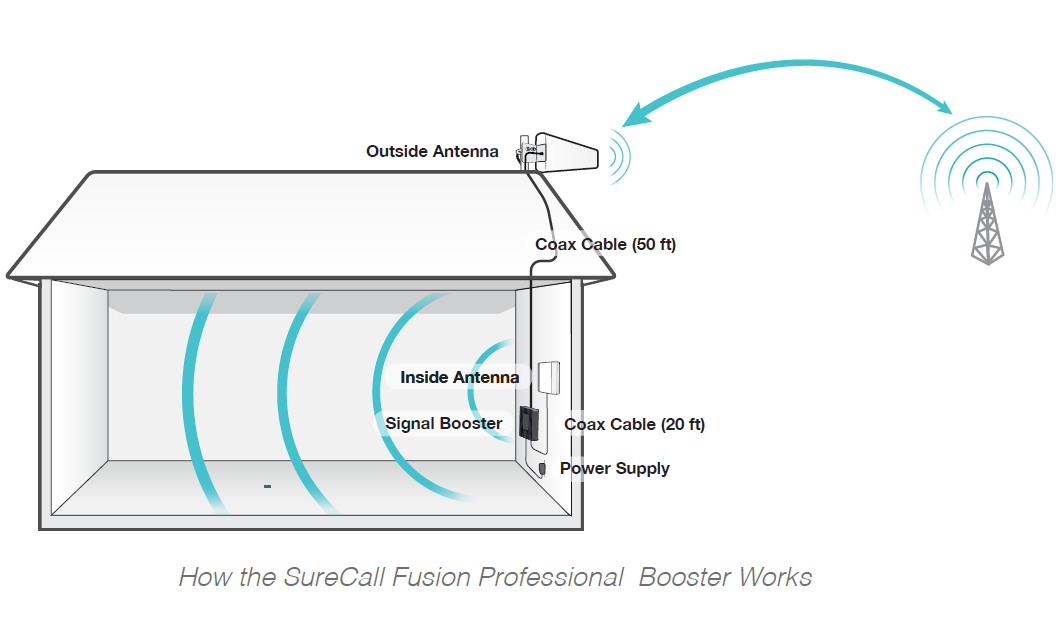

    How It Works

    1. The cell tower sends and receives signals within a general area
    2. An outside antenna captures the signal, the signal booster amplifies the signal strength and indoor antenna(s) send the improved signal to your phone.
    3. The call, text, 4G LTE and 5G data signal returns to the tower by following the same process in reverse.


    Technical Information

    Please contact us if you need more information

    Uplink Frequency Range (MHz):698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included)
    Downlink Frequency Range (MHz):728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included)
    Supported Standards:CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards
    Input/Output Impedance:50 Ohm (Outdoor) / 50 Ohm (Indoor)
    Maximum Gain:72 dB
    Maximum Downlink:8 dBm
    Maximum Uplink:26 dBm
    Noise Figure:8 dB
    VSWR:≤2.0
    AC Power Transmitter:Input AC 110 V, 60 Hz / Output DC 5-15 V
    Maximum Output Power:1 Watt EIRP
    Cable:SC-400 (50 ft) / SC-240 (20 ft)
    RF Connectors:N-Female (both ends)
    Power Consumption:<15W
    Operation Temperature:-4º to +158º F
    Dimensions:7.875" x 5" x 1.188"
    Weight:2 lb. 3 oz.

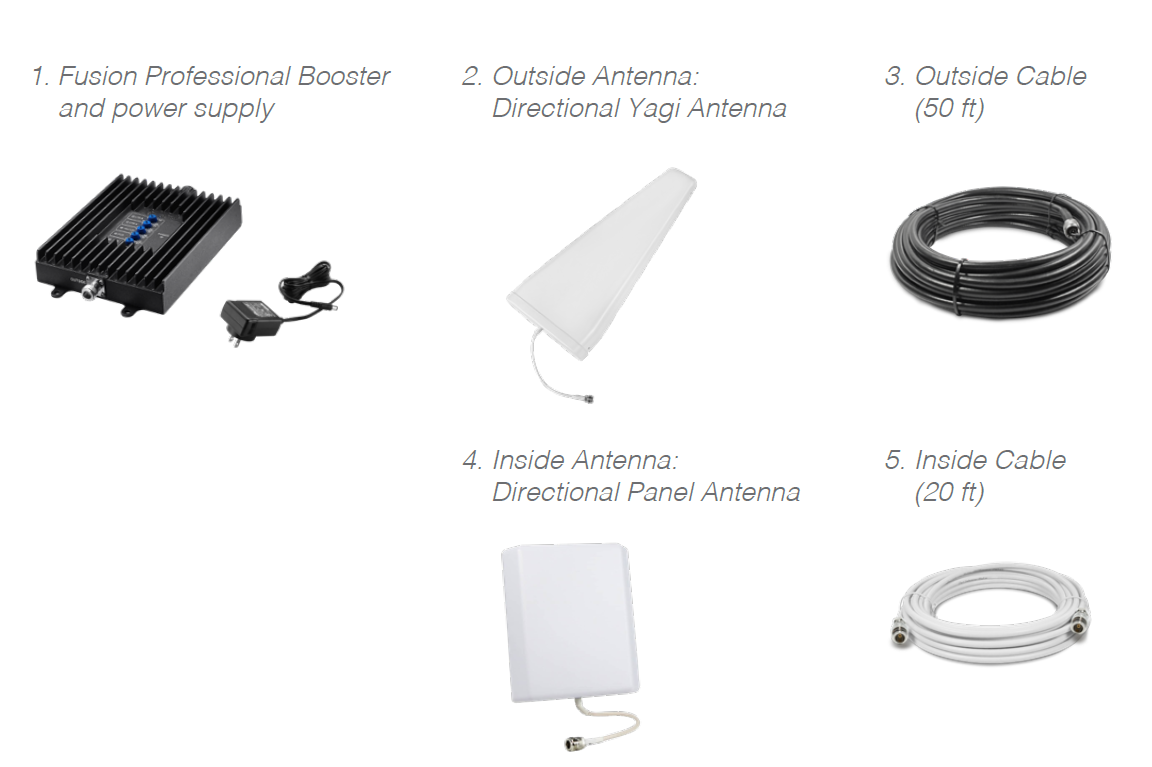

    Kit Contents

    Your Fusion Professional signal booster package includes the following items:

    1. SureCall FusionPro signal booster and power supply
    2. Outside Yagi Antenna - SC-230W
    3. Outside cable (50 ft) to connect the booster and outside antenna SC-400
    4. Inside panel antenna -SC-248W
    5. Inside cable (20 ft) to connect the booster and inside antenna - SC-240




    Specifications

    Booster Brand SureCall
    Booster Connectors Both N Female
    Booster Impedance 50 Ohm
