Product Description

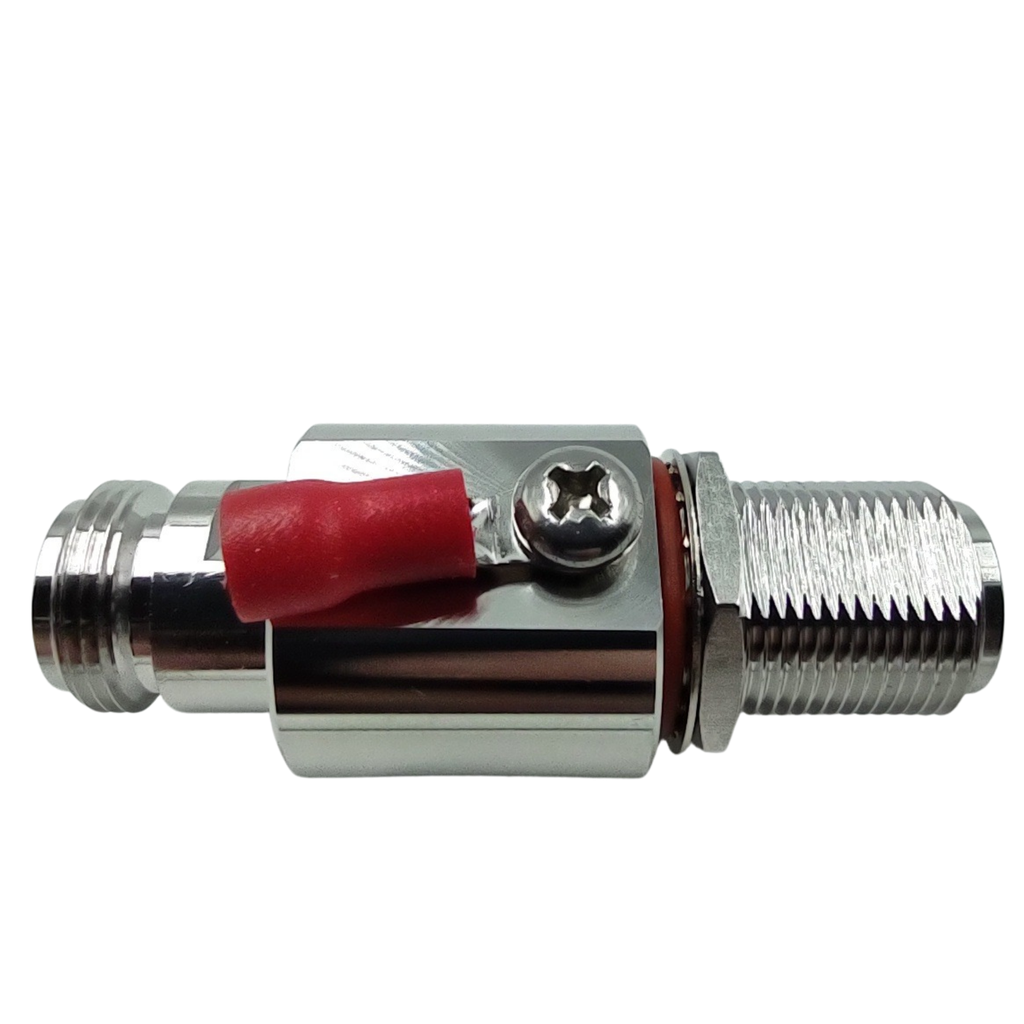

N Female to N Female Canadian Wireless Supply lightning/surge protector/arrestor is made to convert your existing connector to the one that's necessary on the other end, and at the same time protects your equipment (router, modem, cell booster, computer, laptop) from lighting strikes. Made only with high-quality materials - tri-metal brass plated body, bronze contacts and gold center conductor for a minimum signal loss and reliable connection all the time. 50 Ohm impedance makes a coaxial surge protector an ideal solution for all 50 Ohm network boosters and repeaters. It also features a replaceable gas discharge tube that protects connected equipment from electrical surges caused by lightning strikes.
Technical Information
Please contact us if you want more information.
Frequency: | DC – 2,500 MHz |
VSWR: | less than 1.1 |
Insertion Loss: | less than 0.2 dB |
Max Power Rating: | 400w PEP |
Connector 1: | N female |
Connector 2: | N female |
Impulse Wave Discharge Voltage: | 1000v |
Impulse Wave Discharge Capacity: | 6000A |
Impulse Wave Retention Discharge Capacity: | DC350v ± 20% |
Insulating Resistance DC100v: | Over 10,000M ohms |
Weight: | 0.25 lbs. / 113g |
Dimensions: | 3.1"x1.6"x0.8" / 77Wx41Hx20D mm |
