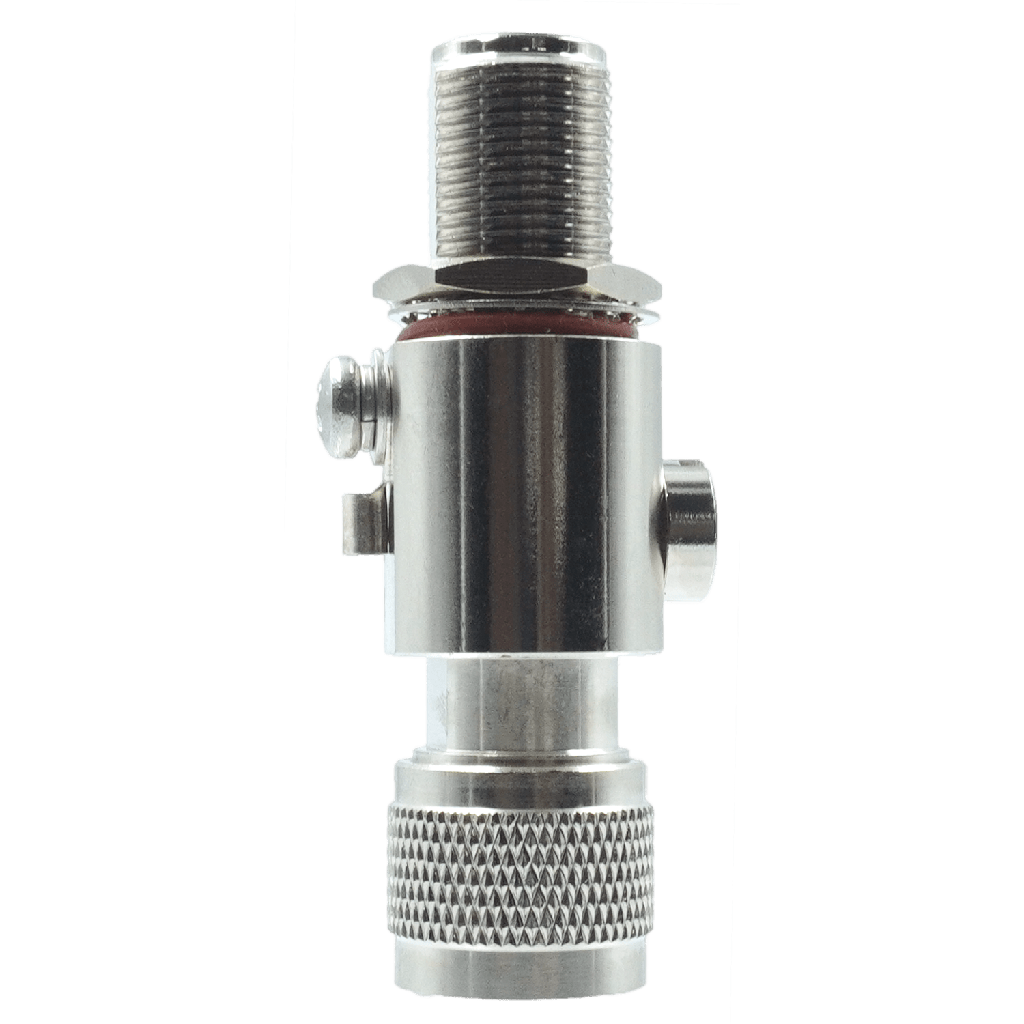

Wirox NF/NM Antenna Coaxial Lightning Surge Protector

https://www.expertmobile.ca/web/image/product.template/5694/image_1920?unique=54d0dcc

N Female to N Male coaxial lightning surge protector with full frequency band protection. (DC‑2500MHz). Place in-line with cable and attach grounding cable to a proper grounding point.

49.97 49.97 CAD 49.97

49.97

Not Available For Sale

    This combination does not exist.

    Cable Connectors: N Male to N Female

    Product Description

    ​N Male to N Female Canadian Wireless Supply lightning/surge protector/arrestor is made to convert your existing connector to the one that's necessary on the other end, and at the same time protects your equipment (router, modem, cell booster, computer, laptop) from lighting strikes. Made only with high-quality materials - tri-metal brass plated body, bronze contacts and gold center conductor for a minimum signal loss and reliable connection all the time. 50 Ohm impedance makes a coaxial surge protector an ideal solution for all 50 Ohm network boosters and repeaters. It also protects connected equipment from electrical surges caused by direct or nearby lightning strikes.

    Technical Information

    Please contact us if you want more information.

    Frequency:
    DC – 2,500 MHz
    VSWR:
    less than 1.1
    Insertion Loss:
    less than 0.2 dB
    Max Power Rating:
    400w PEP
    Connector 1:
    Type N female
    Connector 2:
    Type N male
    Impulse Wave Discharge Voltage:
    1000v
    Impulse Wave Discharge Capacity:
    6000A
    Impulse Wave Retention Discharge Capacity:
    DC350v ± 20%
    Insulating Resistance DC100v:
    Over 10,000M ohms
    Weight:
    0.25 lbs. / 113g
    Dimensions:
    3.1"x1.6"x0.8" / 77Wx41Hx20D mm
