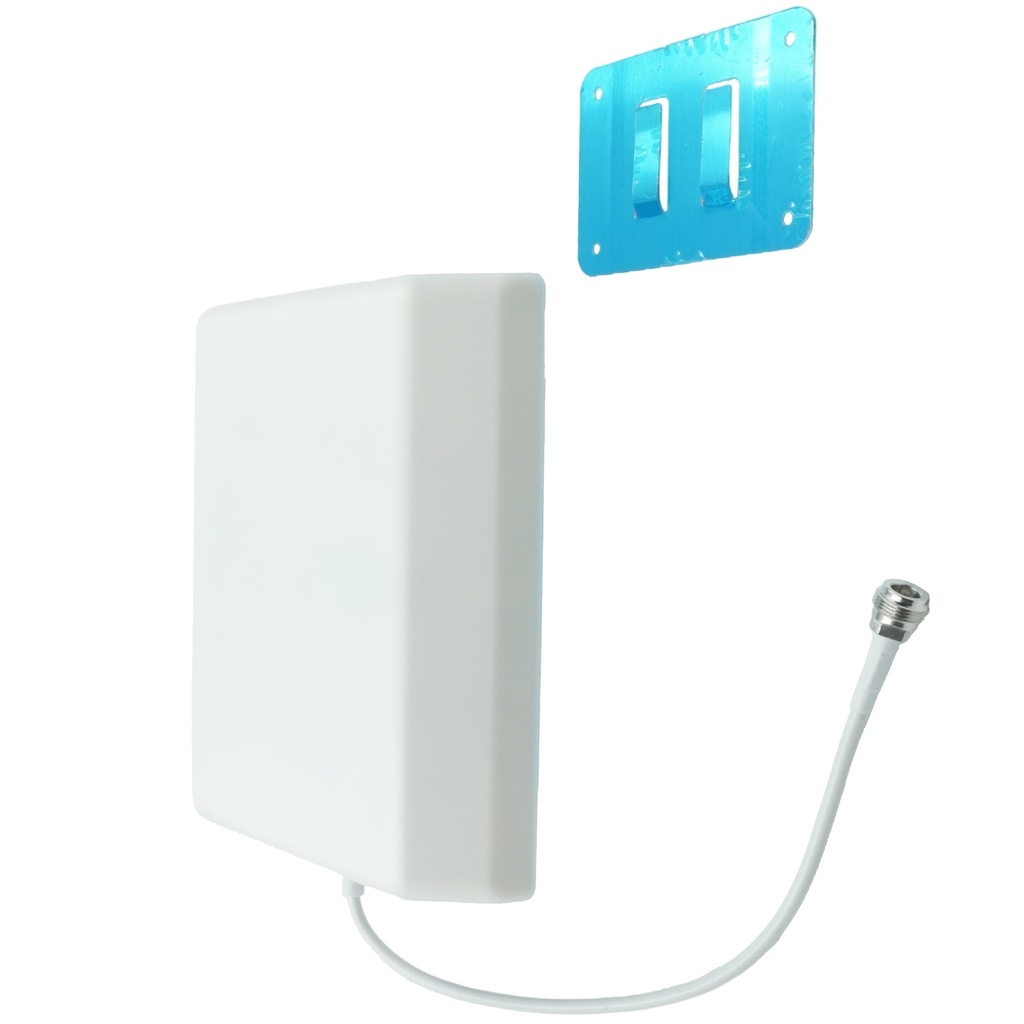

The panel antenna transmits and receives signals directionally and is designed to cover 2G/3G/4G/5G and WLAN systems for Cellular, PCS, AWS and LTE frequencies. Supports UWB frequencies 617-2700 MHz.
Technical Information
- Frequency Range: 617-697 / 698-960 / 1710-2700 MHz
- Input Impedance: 50 ohm
- Max Gain: 5.5 / 6 / 8 dBi
- Beamwidth: H:110° E:70° / H:90° E:80°/ H:65° E:55°
- VSWR: <2
- Polarization Type: Vertical
- Radiation Pattern: Directional

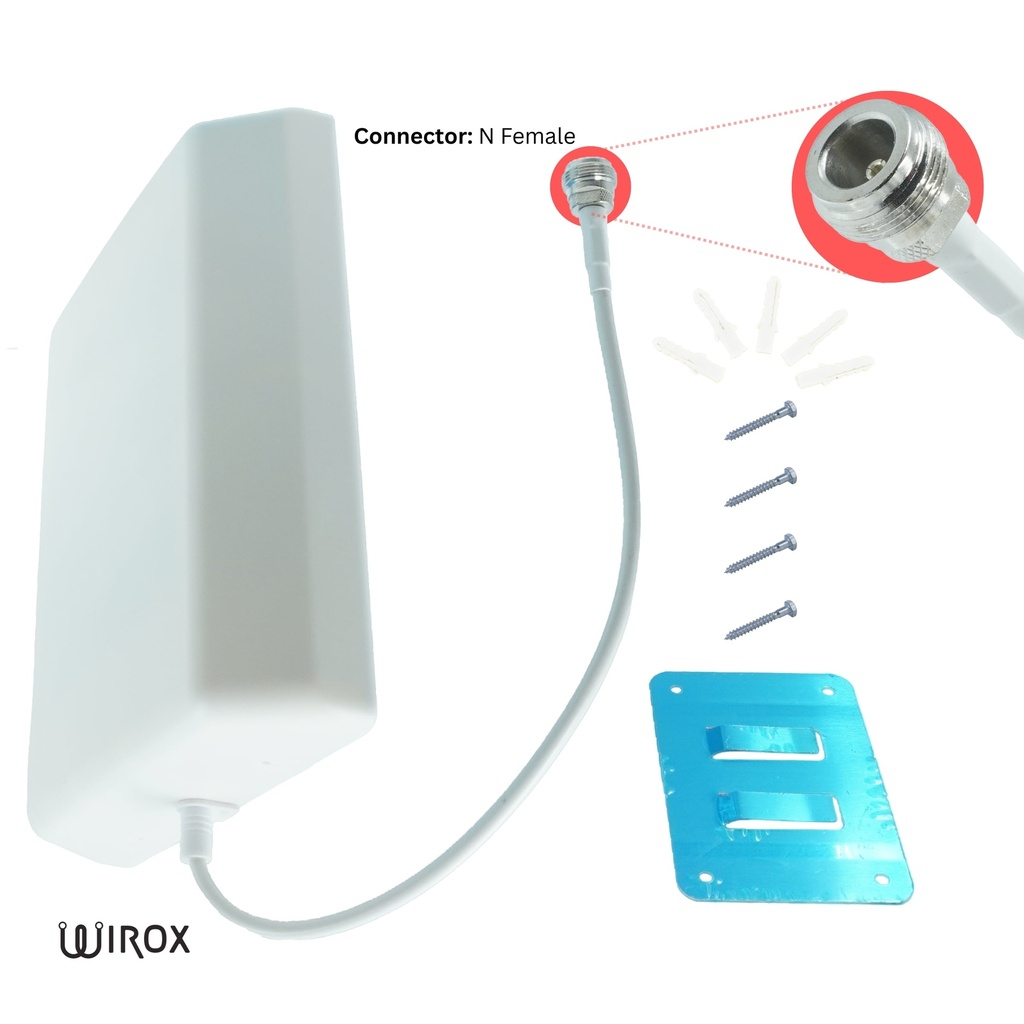

- Connector type: N-Female
- Dimensions: 8.2" x 7" x 1.78"
- Weight: 2.2 lb
- Mount Type: Wall mount
- Operating Humidity: 5% ~ 95%
- Operating Temp: -22° F to +140° F
- Cover material: ABS
- Color: White
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
Cable Connectors | N Female |
