Product Description

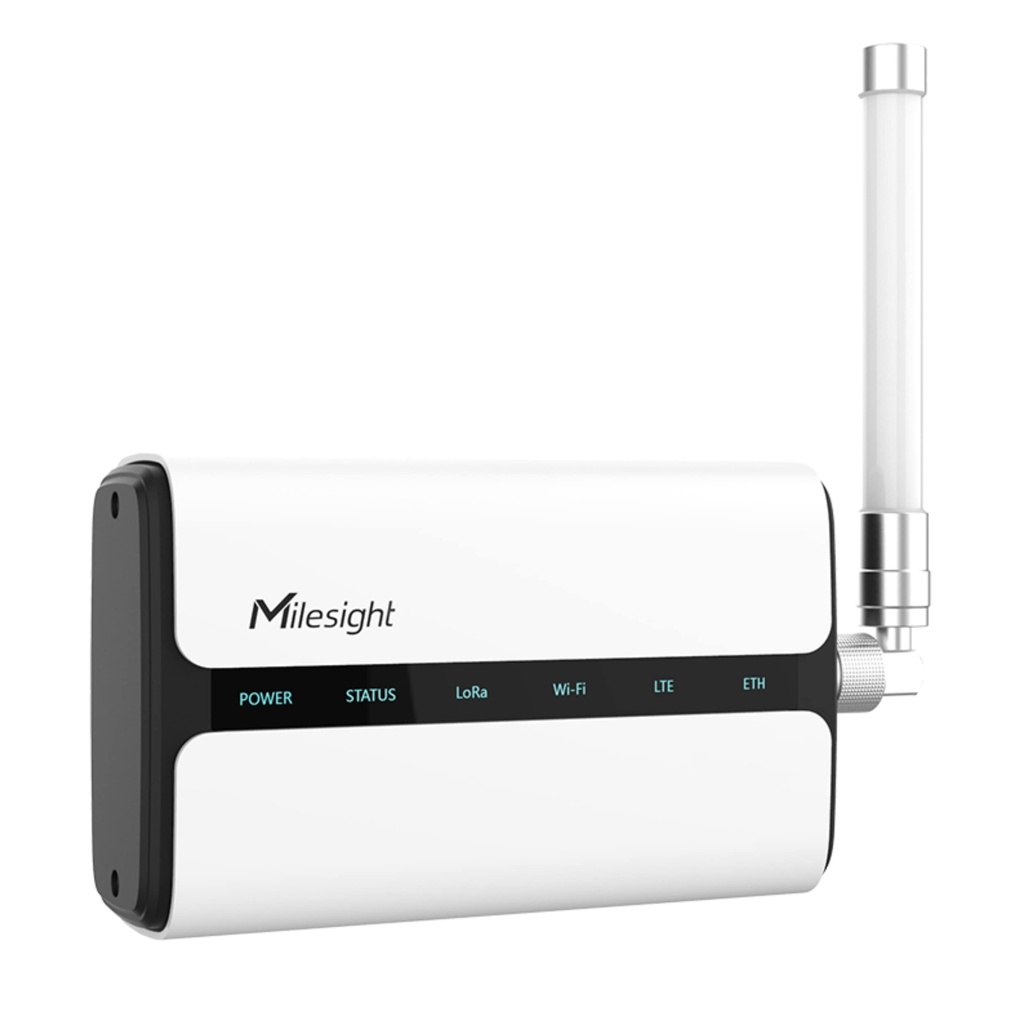

Semi-Industrial LoRaWAN® Gateway

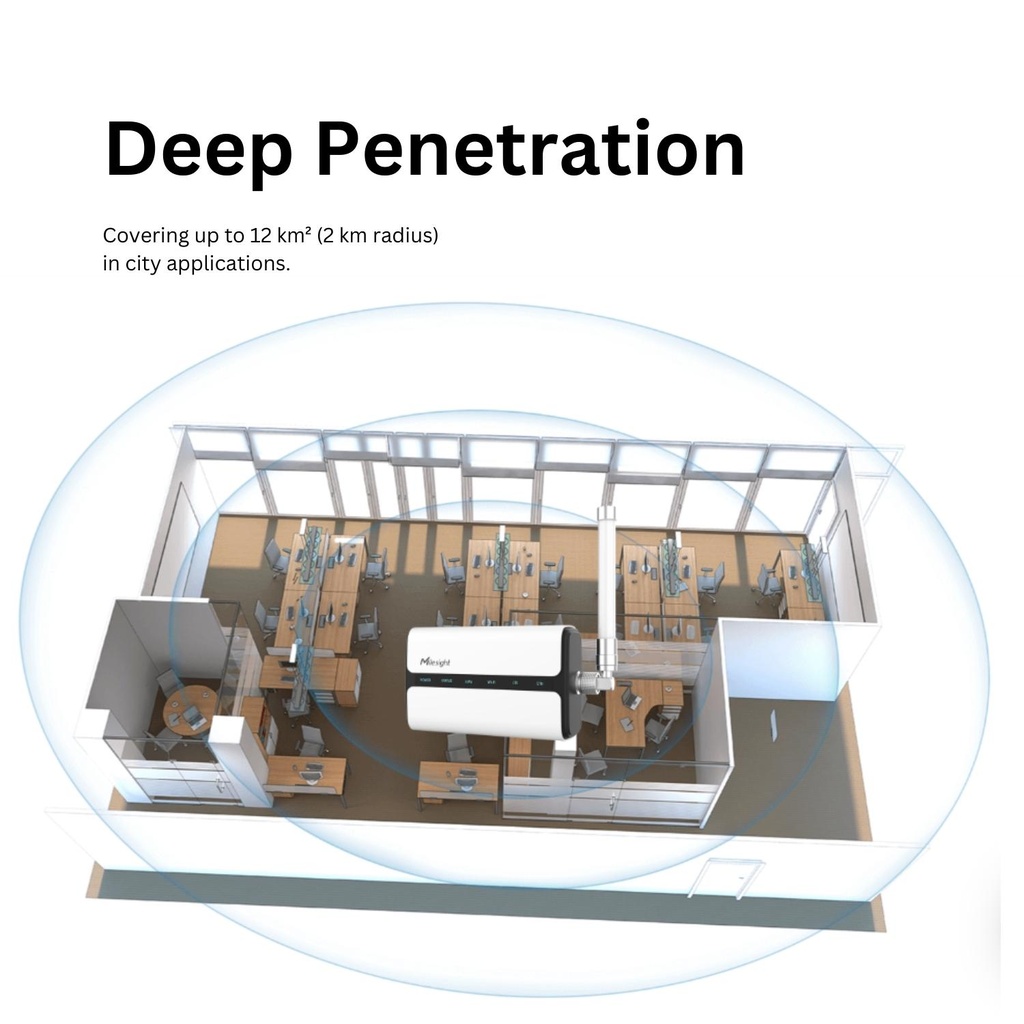

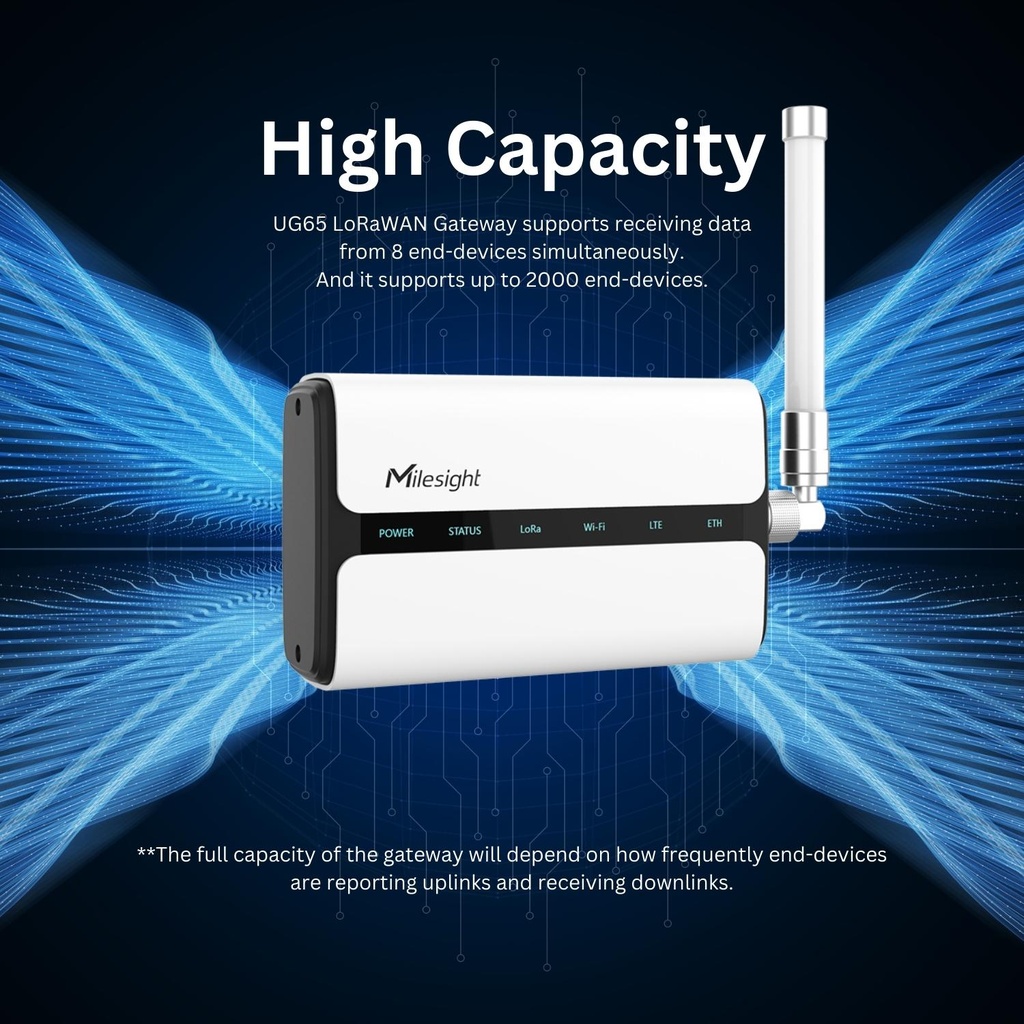

UG65 is a high-performance 8-channel LoRaWAN® gateway that offers reliable connectivity for industrial applications. UG65 is a robust 8-channel indoor LoRaWAN® gateway. Adopting SX1302 LoRa chip and high-performance quad-core CPU, UG65 supports connection with more than 2000 nodes. UG65 has line of sight up to 15 km and can cover about 2 km in urbanized environment, which is ideally suited to smart office, smart building and many other indoor applications.
UG65 supports not only multiple back-haul backups with Ethernet, and Wi-Fi, but also has integrated mainstream network servers (such as TTI, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment.
- IP65 Rating
- NXP Quad-Core Processor
- Semtech SX1302 LoRa Chip
- Multiple Backhaul Connectivities
- Embedded Network Server
- Compatible with Multiple Network Servers
- Global LoRaWAN® Frequency Plans
Find more in features and specifications below or let us know if you need more information.
Application Example
Downloads
UG65 LoRaWAN® Gateway Datasheet
UG65 LoRaWAN® Gateway User Guide
Features
- Quad-core industrial processor with large memory
- Equip with SX1302 chip, handling a higher amount of traffic with lower consumption
- 8 half/full-duplex channels

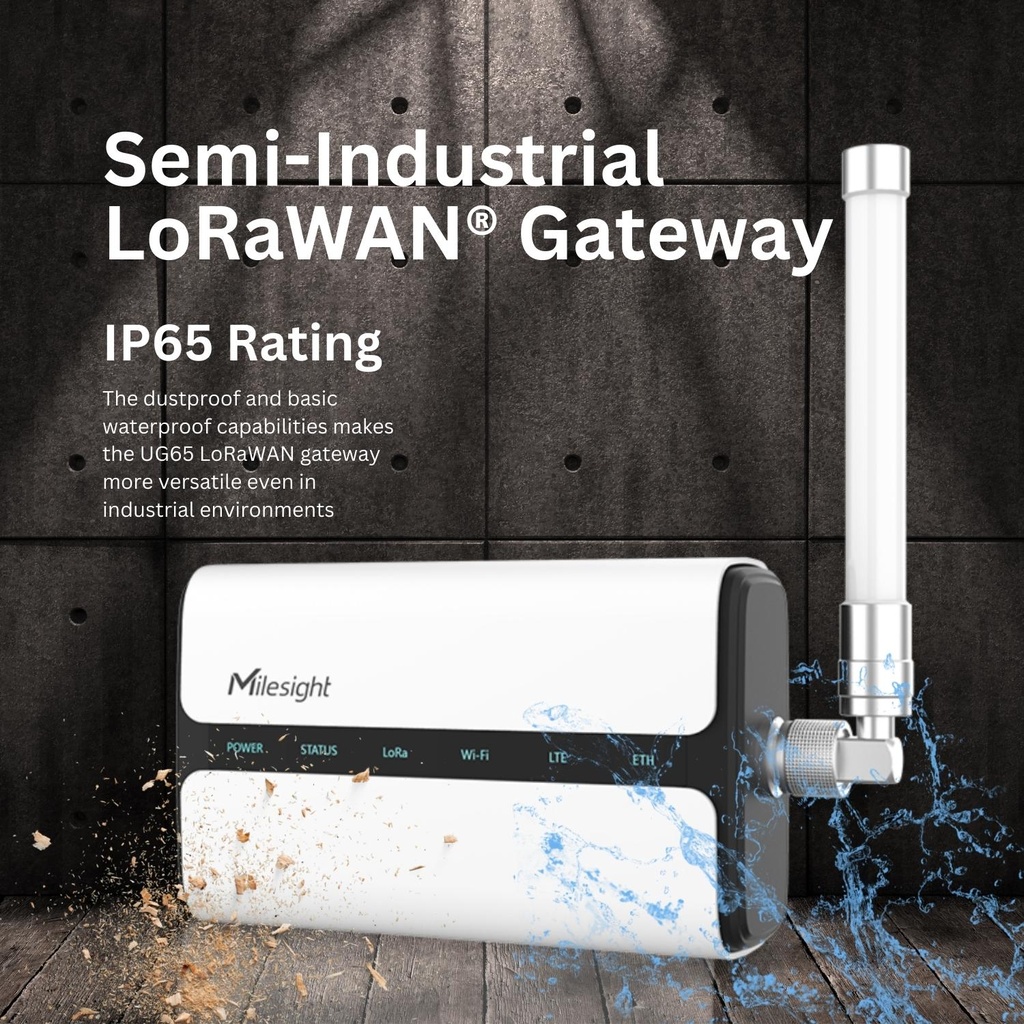

- IP65 enclosure and industrial design for parts of outdoor environment applications like eaves

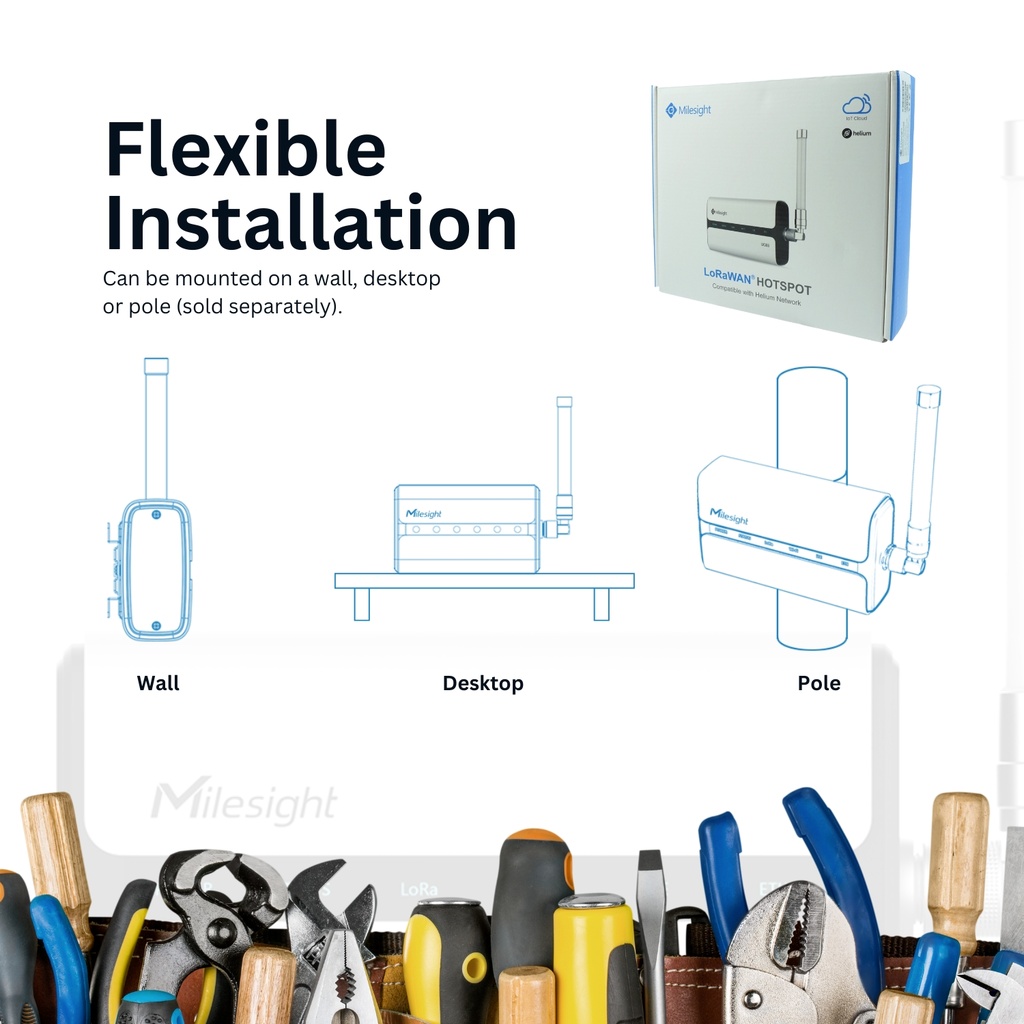

- Desktop, wall or pole mounting
- Multi backhaul backups with Ethernet and Wi-Fi
- DeviceHub and Milesight IoT Cloud provide easy and centralized management of remote devices
- Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
- Compatible with mainstream network servers like The Things Industries, ChirpStack, Actility, Everynet, etc.
- Detect and analyze the noise level and provide intuitive diagram for deployment
- Built-in network server and MQTT/HTTP/HTTPS API for easily integration
- Embedded Python SDK for users secondary development
- Fast and user-friendly programming by Node-RED development tool.
Technical Specifications
Dimensions are in mm.
Package Contents
*Note: Contact us if you need any other special accessories or customized accessories.
Hardware
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
Memory | 512 MB DDR4 RAM |
Flash | 8 GB eMMC |
LoRaWAN
| Antenna | 2 × Internal Antennas (Optional: 1 × 50 Ω N-Female External Connector) |
Channel | 8 (Half/Full-duplex) |
Frequency Band | CN470 / IN865 / EU868 / RU864 / US915 / AU915 / KR920 / AS923 - 1 & 2 & 3 & 4 |
Sensitivity | -140 dBm Sensitivity @ 292 bps |
Output Power | 27 dBm Max |
Protocol | V1.0 Class A / Class B / Class C and V1.0.2 Class A / Class B / Class C |
Ethernet Interface
| Port | 1 × RJ45 (PoE PD Supported) |
Physical Layer | 10/ 100/ 1000 Base-T (IEEE 802.3) |
Data Rate | 10/ 100/ 1000 Mbps (Auto - Sensing) |
Interface | Auto MDI / MDIX |
Mode | Full or Half Duplex (Auto - Sensing) |
Wi-Fi Interface
| Antenna | Internal Antenna |
Standards | IEEE 802.11b/g/n, 2.4 GHz |
Mode | AP or Client Mode |
Security | WPA/ WPA2 Authentication, WEP/ TKIP/ AES Encryption |
Tx Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) |
Cellular Interface (NOT AVAILABLE ON THIS PRODUCT - OPTIONAL)
| Antenna | Internal Antenna |
| SIM Slot | 1 (mini SIM - 2FF) |
Others
| Reset Button | 1 × RST |
| Console Port | 1 × Type-C |
LED Indicators | 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH |
Built-in | Watchdog, RTC, Timer |
Software
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
VPN Tunnel | OpenVPN / IPsec / PPTP / L2TP / GRE / DMVPN |
Firewall | ACL / DMZ / Port Mapping / MAC Binding / URL Filter |
Management | Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud, Yeastar Workplace Platform |
Reliability | WAN Failover |
App | Python SDK, Node-RED |
Power Supply and Consumption
| Power Supply |
|
Power Consumption | Typical 2.9 W, Max 4.2 W |
Physical Characteristics
| Ingress Protection | IP65 |
| Dimensions | 180 x 110 x 56.5 mm (7.09 x 4.33 x 2.22 in) |
| Installation | Desktop, Wall or Pole Mounting |
Environmental
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) Reduced Cellular Performance Above 60 °C |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25 °C / 77 °F |
Approvals
| Regulatory | CE, FCC, IC |
| Environmental | RoHS |
